SBS110 Chain
Home > Specialty Chain > Engineering Class Chains > Steel Bushed Chains > SBS110 Chain

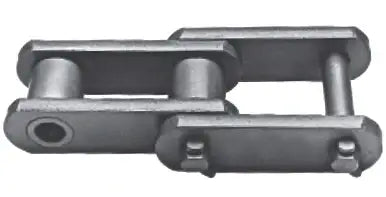

SBS110 Chain

SKU: SBS110-CHAIN
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!

Buy it With:

 [{"variant_id":"51715358130543" , "metafield_value":""}]
SBS110 Chain Description/Features
SBS110 Chain Specifications
This SBS110 chain is a high quality, high strength steel bushed chain that is extremely durable. SBS110 Chain is ideal for operating in applications that are extremely gritty and or abrasive. The steel bushed chains we offer are engineered and manufactured using different types of steel to get the most use and strength out of the chain as possible. We also offer a complete selection of high quality SBS110 chain sprockets and attachments. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:
SBS110 Chain
  • Chain Size: SBS110
  • Pitch: 6.000"
  • Overall Width (A): 4.31"
  • Dimension (B): 2.28"
  • Dimension (C): 2.03"
  • Inside Width (E): 2.13"
  • Bushing Diameter (D): 1.25"
  • Bushing Style: Double Flat
  • Bushing Material: Carbon Case-Hardened
  • Pin Diameter (G): 0.63"
  • Pin Material: Carbon Case-Hardened
  • Pin Style: Double Flat
  • Sidebar Height (H): 1.50"
  • Sidebar Thickness (T): 0.38"
  • Sidebar Material: Carbon Heat-Treated
  • Average Ultimate Strength: 40,000 LBS
  • Maximum Working Load: 6,300 LBS
  • Weight Per Foot: 6.3 LBS
