S51K1 Attachment
Note:
Custom Cut to Length Chain Also Available
SKU: S51K1-ATTACHMENT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
S51K1 Attachment Features
S51K1 Attachment Specifications
This S51K1 attachment is manufactured in accordance to DIN8189 standards. It can be assembled onto the chain in any configuration needed or can be supplied as an attachment for field installation. To get a quote or for more information please contact us and we will be happy to assist you.

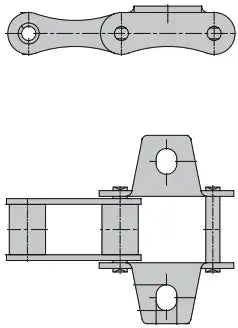

S51K1 Attachment Dimensions
- Dimension (P): 38.10mm
- Dimension (b1): 16.0mm
- Dimension (G): 19.0mm
- Dimension (F): 49.8mm
- Dimension (W): 71.5mm
- Dimension (h4): 11.4mm
- Dimension (d4): 8.3mm
- Dimension (K): 9.9mm
- Dimension (h2): 17.3mm
- Dimension (P): 38.10mm
- Dimension (b1): 16.0mm
- Dimension (G): 19.0mm
- Dimension (F): 49.8mm
- Dimension (W): 71.5mm
- Dimension (h4): 11.4mm
- Dimension (d4): 8.3mm
- Dimension (K): 9.9mm
- Dimension (h2): 17.3mm
