**CURRENTLY UNAVAILABLE. PLEASE CONTACT US SO WE CAN HELP YOU FIND A MORE COMMON/STANDARD CHAIN THAT WILL WORK IN YOUR APPLICATION**

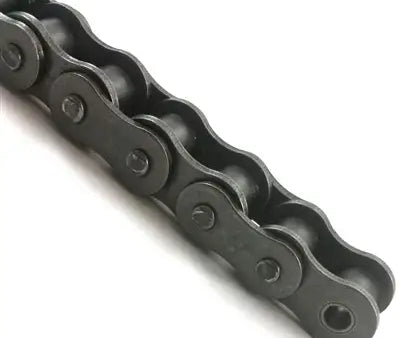

S10 roller chain is considered an ultra-miniature roller chain because it is the smallest production chain in the world, and is used in places with extremely limited space. Our S10 chain is manufactured to the most exacting specifications and is quiet, lightweight, and high performance. Typically this chain can be found in communications equipment, robotics, business machines, medical equipment, photographic equipment and much more. Besides the chain, we also supply S10 roller chain sprockets. For additional information or to get a quote please contact us and we will be happy to assist you.
S10 Roller Chain Dimensions
- Chain Size: S10
- Pitch (P): 0.125"
- Roller Diameter (D): 0.067"
- Roller Width (W): 0.051"
- Link Plate Height (H): 0.114"
- Link Plate Thickness (T): 0.016"
- Pin Diameter (E): 0.045"
- Pin Length (A): 0.144"
- Tensile Strength: 220 LBS
- Maximum Working Load: 44 LBS
- Weight: 0.02 LBS/ FT
Feature
- Miniature Roller Chain
- Manufactured With Extreme Precision
- High Quality and Durable
- Chain Size: S10
- Pitch (P): 0.125"
- Roller Diameter (D): 0.067"
- Roller Width (W): 0.051"
- Link Plate Height (H): 0.114"
- Link Plate Thickness (T): 0.016"
- Pin Diameter (E): 0.045"
- Pin Length (A): 0.144"
- Tensile Strength: 220 LBS
- Maximum Working Load: 44 LBS
- Weight: 0.02 LBS/ FT
