Specialty Chain > Pan Conveyor Chain

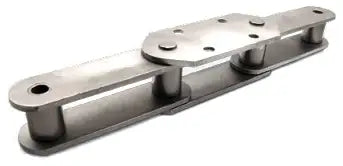

R90350 Chain - Conveyor Chain
Note:
Custom Cut to Length Chain Also Available
SKU: R90350-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
R90350 Chain - Conveyor Chain Features
R90350 Chain - Conveyor Chain Specifications
R90350 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R90350 chain.
R90350 Chain Dimensions
- Chain Size: R90350
- Pitch (P): 350mm
- Dimension (D2): 85mm
- Dimension (D6): 42.0mm
- Dimension (L): 88mm
- Dimension (H): 110mm
- Dimension (T): 16mm
- Dimension (F1): 101.5mm
- Dimension (F2): 95.5mm
- Average Ultimate Strength: 166,000 kG
R90350-B Style G Attachment
- Dimension (V): 240mm
- Dimension (F3): 200mm
- Dimension (F4): 170mm
- Dimension (Tp): 12mm
- Dimension (Q): 89.5mm
- Dimension (A): 40mm
- Dimension (O): 28mm
- Bolt Diameter: M24
- Chain Size: R90350
- Pitch (P): 350mm
- Dimension (D2): 85mm
- Dimension (D6): 42.0mm
- Dimension (L): 88mm
- Dimension (H): 110mm
- Dimension (T): 16mm
- Dimension (F1): 101.5mm
- Dimension (F2): 95.5mm
- Average Ultimate Strength: 166,000 kG
R90350-B Style G Attachment
- Dimension (V): 240mm
- Dimension (F3): 200mm
- Dimension (F4): 170mm
- Dimension (Tp): 12mm
- Dimension (Q): 89.5mm
- Dimension (A): 40mm
- Dimension (O): 28mm
- Bolt Diameter: M24
