Specialty Chain > Pan Conveyor Chain

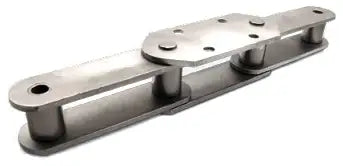

R60400 Chain - Conveyor Chain

Note: Custom Cut to Length Chain Also Available
SKU: R60400-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51715339452783" , "metafield_value":""}]
R60400 Chain - Conveyor Chain Features
R60400 Chain - Conveyor Chain Specifications
R60400 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R60400 chain.

R60400 Chain Dimensions

R60400 Chain - Conveyor Chain
  • Chain Size: R60400
  • Pitch (P): 400mm
  • Dimension (D2): 70mm
  • Dimension (D6): 35.0mm
  • Dimension (L): 77mm
  • Dimension (H): 90mm
  • Dimension (T): 12.7mm
  • Dimension (F1): 88mm
  • Dimension (F2): 84mm
  • Average Ultimate Strength: 106,00 kG

R60400-B Style G Attachment

R60400 Chain - Conveyor Chain
  • Dimension (V): 280mm
  • Dimension (F3): 230mm
  • Dimension (F4): 200mm
  • Dimension (Tp): 16mm
  • Dimension (Q): 81mm
  • Dimension (A): 50mm
  • Dimension (O): 35mm
  • Bolt Diameter: M30

  • Chain Size: R60400
  • Pitch (P): 400mm
  • Dimension (D2): 70mm
  • Dimension (D6): 35.0mm
  • Dimension (L): 77mm
  • Dimension (H): 90mm
  • Dimension (T): 12.7mm
  • Dimension (F1): 88mm
  • Dimension (F2): 84mm
  • Average Ultimate Strength: 106,00 kG

R60400-B Style G Attachment


  • Dimension (V): 280mm
  • Dimension (F3): 230mm
  • Dimension (F4): 200mm
  • Dimension (Tp): 16mm
  • Dimension (Q): 81mm
  • Dimension (A): 50mm
  • Dimension (O): 35mm
  • Bolt Diameter: M30
