Specialty Chain > Pan Conveyor Chain

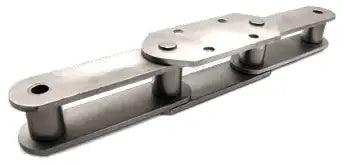

R60300 Chain - Conveyor Chain
Note:
Custom Cut to Length Chain Also Available
SKU: R60300-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
R60300 Chain - Conveyor Chain Features
R60300 Chain - Conveyor Chain Specifications
R60300 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R60300 chain.
R60300 Chain Dimensions
- Chain Size: R60300
- Pitch (P): 300mm
- Dimension (D2): 70mm
- Dimension (D6): 35.0mm
- Dimension (L): 77mm
- Dimension (H): 90mm
- Dimension (T): 12.7mm
- Dimension (F1): 88mm
- Dimension (F2): 84mm
- Average Ultimate Strength: 106,000 kG
- Chain Size: R60300
- Pitch (P): 300mm
- Dimension (D2): 70mm
- Dimension (D6): 35.0mm
- Dimension (L): 77mm
- Dimension (H): 90mm
- Dimension (T): 12.7mm
- Dimension (F1): 88mm
- Dimension (F2): 84mm
- Average Ultimate Strength: 106,000 kG
