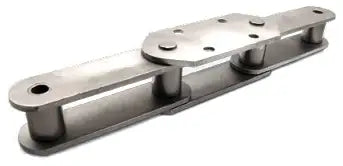

R26300 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R26300 chain.
R26300 Chain Dimensions
- Chain Size: R26300
- Pitch (P): 300mm
- Dimension (D2): 50.8mm
- Dimension (D6): 22.2mm
- Dimension (L): 57.2mm
- Dimension (H): 63.5mm
- Dimension (T): 9.5mm
- Dimension (F1): 68.5mm
- Dimension (F2): 61mm
- Average Ultimate Strength: 57,500 kG
R26300-A Style G Attachment
- Dimension (V): 150mm
- Dimension (F3): 180mm
- Dimension (F4): 100mm
- Dimension (Tp): 9.5mm
- Dimension (Q): 48mm
- Dimension (A): 26mm
- Dimension (O): 15mm
- Bolt Diameter: M12
R26300-B Style G Attachment
- Dimension (V): 200mm
- Dimension (F3): 170mm
- Dimension (F4): 140mm
- Dimension (Tp): 12mm
- Dimension (Q): 60mm
- Dimension (A): 38mm
- Dimension (O): 24mm
- Bolt Diameter: M20
Feature
- Premium Quality Chain
- Made Using Top Grade Metalergies
- All Components are Heat-Treated
- Maximum Fatigue Resistance
- High-Performing Chain
- Chain Size: R26300
- Pitch (P): 300mm
- Dimension (D2): 50.8mm
- Dimension (D6): 22.2mm
- Dimension (L): 57.2mm
- Dimension (H): 63.5mm
- Dimension (T): 9.5mm
- Dimension (F1): 68.5mm
- Dimension (F2): 61mm
- Average Ultimate Strength: 57,500 kG
R26300-A Style G Attachment
- Dimension (V): 150mm
- Dimension (F3): 180mm
- Dimension (F4): 100mm
- Dimension (Tp): 9.5mm
- Dimension (Q): 48mm
- Dimension (A): 26mm
- Dimension (O): 15mm
- Bolt Diameter: M12
R26300-B Style G Attachment
- Dimension (V): 200mm
- Dimension (F3): 170mm
- Dimension (F4): 140mm
- Dimension (Tp): 12mm
- Dimension (Q): 60mm
- Dimension (A): 38mm
- Dimension (O): 24mm
- Bolt Diameter: M20
