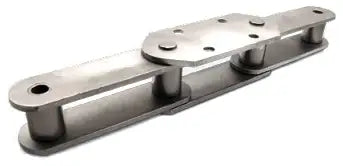

R26250 Chain - Conveyor Chain

R26250 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R26250 chain.

R26250 Chain Dimensions

• Chain Size: R26250
• Pitch (P): 250mm
• Dimension (D2): 50.8mm
• Dimension (D6): 22.2mm
• Dimension (L): 57.2mm
• Dimension (H): 63.5mm
• Dimension (T): 9.5mm
• Dimension (F1): 56mm
• Dimension (F2): 61mm
• Average Ultimate Strength: 57,500 kG

R26250-A Style G Attachment

• Dimension (V): 150mm
• Dimension (F3): 140mm
• Dimension (F4): 100mm
• Dimension (Tp): 9.5mm
• Dimension (Q): 48mm
• Dimension (A): 26mm
• Dimension (O): 15mm
• Bolt Diameter: M12

R26250-B Style G Attachment

• Dimension (V): 150mm
• Dimension (F3): 140mm
• Dimension (F4): 100mm
• Dimension (Tp): 9.5mm
• Dimension (Q): 48mm
• Dimension (A): 32mm
• Dimension (O): 19mm
• Bolt Diameter: M16
