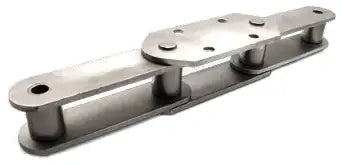

R26200 Chain - Conveyor Chain
Note:
Custom Cut to Length Chain Also Available
SKU: R26200-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
R26200 Chain - Conveyor Chain Features
R26200 Chain - Conveyor Chain Specifications
R26200 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R26200 chain.
R26200 Chain Dimensions
- Chain Size: R26200
- Pitch (P): 200mm
- Dimension (D2): 50.8mm
- Dimension (D6): 22.2mm
- Dimension (L): 57.2mm
- Dimension (H): 63.5mm
- Dimension (T): 9.5mm
- Dimension (F1): 56mm
- Dimension (F2): 61mm
- Average Ultimate Strength: 57,500 kG
R26200-A Style G Attachment
- Dimension (V): 120mm
- Dimension (F3): 100mm
- Dimension (F4): 80mm
- Dimension (Tp): 9.5mm
- Dimension (Q): 48mm
- Dimension (A): 26mm
- Dimension (O): 15mm
- Bolt Diameter: M12
R26200-B Style G Attachment
- Dimension (V): 120mm
- Dimension (F3): 100mm
- Dimension (F4): 80mm
- Dimension (Tp): 9.5mm
- Dimension (Q): 48mm
- Dimension (A): 26mm
- Dimension (O): 15mm
- Bolt Diameter: M14
- Chain Size: R26200
- Pitch (P): 200mm
- Dimension (D2): 50.8mm
- Dimension (D6): 22.2mm
- Dimension (L): 57.2mm
- Dimension (H): 63.5mm
- Dimension (T): 9.5mm
- Dimension (F1): 56mm
- Dimension (F2): 61mm
- Average Ultimate Strength: 57,500 kG
R26200-A Style G Attachment
- Dimension (V): 120mm
- Dimension (F3): 100mm
- Dimension (F4): 80mm
- Dimension (Tp): 9.5mm
- Dimension (Q): 48mm
- Dimension (A): 26mm
- Dimension (O): 15mm
- Bolt Diameter: M12
R26200-B Style G Attachment
- Dimension (V): 120mm
- Dimension (F3): 100mm
- Dimension (F4): 80mm
- Dimension (Tp): 9.5mm
- Dimension (Q): 48mm
- Dimension (A): 26mm
- Dimension (O): 15mm
- Bolt Diameter: M14
