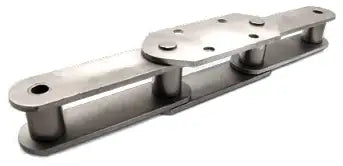

R120400 Chain - Conveyor Chain

R120400 Chain - Conveyor Chain

Note: Custom Cut to Length Chain Also Available
Product Code: R120400-CHAIN
Shipping calculated at checkout.
View full details
R120400 chain is used in several applications including; bucket elevators, grain handling, and pan conveyors. Having ample mounting area makes it possible to create deep-pan conveyors with this chain with this use of G attachments. More specifically, this chain is manufactured using premium heat-treated and solid components for improved fatigue resistance, wear life, and overall performance. Additionally, we supply a wide range of sprockets for R120400 chain.

R120400 Chain Dimensions


  • Chain Size: R120400
  • Pitch (P): 400mm
  • Dimension (D2): 100mm
  • Dimension (D6): 50.0mm
  • Dimension (L): 100mm
  • Dimension (H): 130mm
  • Dimension (T): 19mm
  • Dimension (F1): 119.5mm
  • Dimension (F2): 108mm
  • Average Ultimate Strength: 225,000 kG

R120400-B Style G Attachment


  • Dimension (V): 280mm
  • Dimension (F3): 230mm
  • Dimension (F4): 200mm
  • Dimension (Tp): 16mm
  • Dimension (Q): 105.5mm
  • Dimension (A): 50mm
  • Dimension (O): 35mm
  • Bolt Diameter: M30

Feature

  • Premium Quality Chain
  • Made Using Top Grade Metalergies
  • All Components are Heat-Treated
  • Maximum Fatigue Resistance
  • High-Performing Chain
