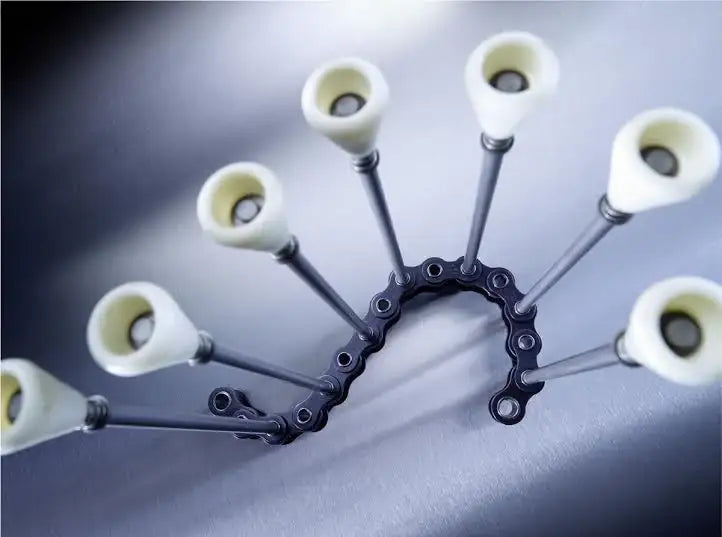

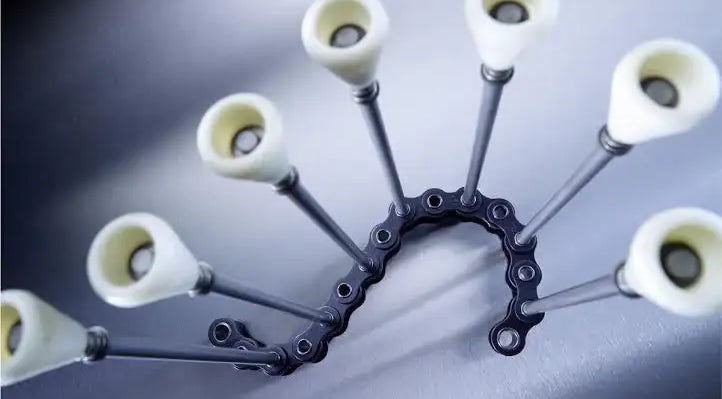

POChain-I #60 Pin Oven Chain

#60 POChain-I pin oven chain is manufactured utilizing premium precision components that are highly wear-resistant for the longest operation with top performance. This chain is also typically treated during the manufacturing process with a special high-temp lubricant called IPP, this lubricant is PWIS-free, drip-proof has a very low evaporation rate, is suitable for high-temperature operation and approved for use in the food industry. We offer a wide arrangement of pin lengths for various application circumstances with a high-performance PEEK material protective head. Specifically, the PEEK material has a superb heat resistance (up to 500° Farenheight), highly resistant to chemicals, and is optionally available with sliding washers. We supply this chain with an array of pin configurations and spacing options, for more information or to get a quote simply contact us and our customer support team will be happy to assist you.
POChain-I Pin Configuration:

The pins are integrated into the outer chain plates.

POChain-I #60 Pin Oven Chain Dimensions

• Chain Type: POChain-I
• Base Chain Part #: ISO 12A-1 / ANSI 60-1
• Designation: M128A-SL
• Pitch (P): 0.75"
• Inner Width (B1): 0.5"
• Minimum Breaking Load: 31,300 N
• Roller Diameter (D1): 11.91mm
• Pin Length (B4): 26.7mm
• Transporter Pin Diameter (T): 5.97mm
• Chain Weight (dependent on transport pin lengths): 1.9 Kg/ M
