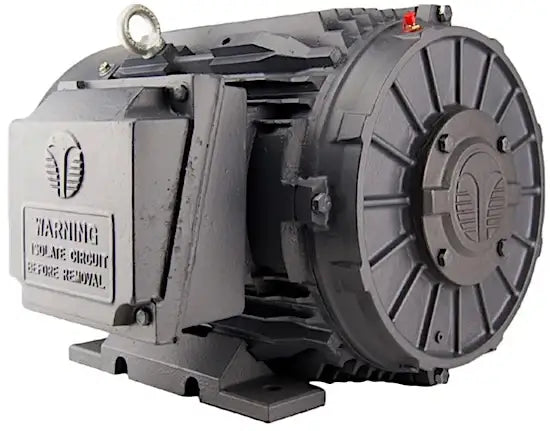

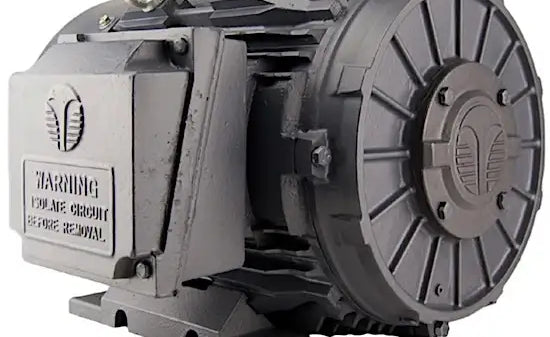

3 HP Rotary Phase Converter Motor - 12 Lead Dual Voltage

3 HP Rotary Phase Converter Motor - 12 Lead Dual Voltage

Note: Custom Cut to Length Chain Also Available
Regular price $329.99
$329.99
In Stock
On Sale Sold out
Product Code: PC3-CI-TF-182T-4-B-D-3
In Stock
Shipping calculated at checkout.

Login to Request a Quote

View full details
Our premium 3 HP rotary phase converter motor with 12 lead single-voltage configurations is designated by part # PC3-CI-TF-182T-4-B-D-3 and sets the bar in terms of performance, lifespan, and durability! Encapsulated in a high-strength IP55-rated cast iron housing that is totally enclosed and fan-cooled (TEFC), this 3 horsepower phase converter motor has dual oversized bearings, double-lip oil seals, one-way brass condensation drains, and an industry-leading 24-month warranty. The PC3-CI-TF-182T-4-B-D-3 motor is also F1, F2, and F3 field convertible. For additional information or to get a quote from our customer service team on our premium 3 hp rotary phase converter motor, contact us today, and we will gladly assist you!

3 HP Rotary Phase Converter Motor Specs

  • Part #: PC3-CI-TF-182T-4-B-D-3
  • Horse Power: 3
  • Frame Size: 182T
  • Body: T
  • Poles: 4
  • RPM: 1800
  • Voltage: 230/ 460
  • Rating: IP55
  • Weight: LBS
3 HP Rotary Phase Converter Motor Drawing - Download Drawing

3 HP Rotary Phase Converter Motor Specs - Download Spec Sheet


Feature

  • Totally Enclosed Fan-cooled (TEFC)
  • IP 55 Rated
  • Double Lip Oil Seals
  • Cast Iron Housing
  • Dual Oversized Bearings
  • F1, F2, F3 Field Convertible
  • One-Way Brass Condensation Drains
  • 24-Month Warranty
Featured image
  • Part #: PC3-CI-TF-182T-4-B-D-3
  • Horse Power: 3
  • Frame Size: 182T
  • Body: T
  • Poles: 4
  • RPM: 1800
  • Voltage: 230/ 460
  • Rating: IP55
  • Weight: LBS
