MSR911 Chain

Specialty Chain > Engineering Class Chains > Roller Conveyor Chain > MSR911 Roller Chain

MSR911 Chain

Note: Custom Cut to Length Chain Also Available
SKU: MSR911-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715264840047" , "metafield_value":""}]
MSR911 Chain Features
MSR911 Chain Specifications

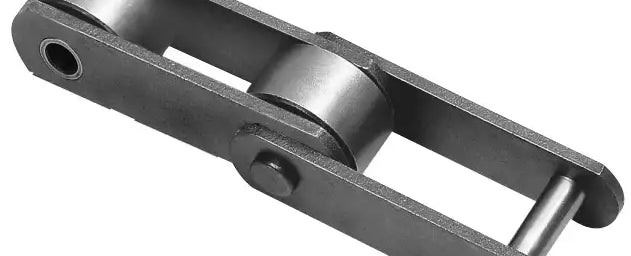

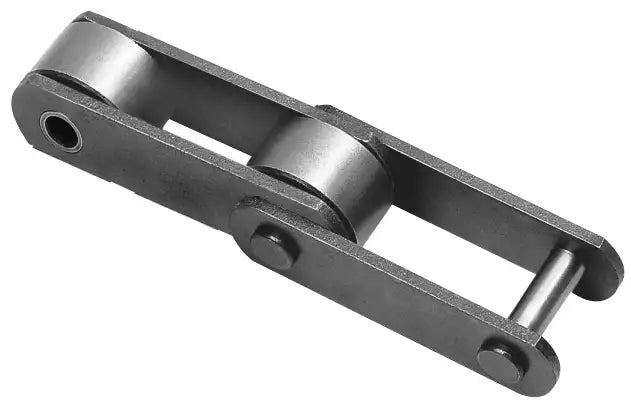

MSR911 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This MSR911 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality MSR911 sprockets with very short lead-times. For more information or to get a quote on MSR911 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:
MSR911 Chain
  • Chain #: MSR911
  • Pitch: 9.000"
  • Pin Diameter (E): 0.625"
  • Overall Width Cottered (C2): 3.34"
  • Sidebar Height (H): 2.00"
  • Roller Diameter (D): 3.00"
  • Sidebar Thickness (T): 0.31"
  • Distance Between Sidebars (W): 1.50"
  • Length Of Bushing (X): 2.12"
  • Average Ultimate Strength: 38,000 LBS
  • Maximum Recommended Working Load: 4,650 LBS
  • Links Per 10ft: 13
  • Weight Per Foot: 8.5 LBS
  • Pin Material: Thru-Hardened Alloy Steel
  • Bushing Material: Case-Hardened Alloy Steel
  • Roller Material: Case-Hardened Carbon Steel
  • Sidebar Material: Carbon Steel
  • Style: 1
