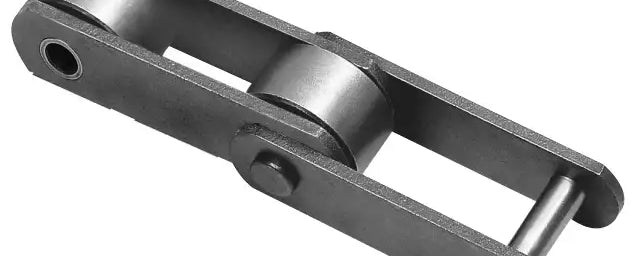

MSR4013 Chain

MSR4013 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: MSR4013-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
MSR4013 Roller Conveyor Chain Connecting Link (Master Link)
MSR4013 Roller Conveyor Chain Connecting Link (Master Link)
Login
MSR4013 Pin
MSR4013 Pin
Login
View full details
Description
Specification
MSR4013 Chain is a roller conveyor chain that is manufactured to specific specifications and standards throughout the industry. This MSR4013 Chain features premium solid components that have been engineered and manufactured to have high strength, a long working life, and great performance. Each component has either been heat-treated or hardened to increase the strength and working life of the chain. USA Roller Chain and Sprockets is a one-stop one-shop facility meaning you can get everything you need from one place. We also offer a full line of high quality MSR4013 sprockets with very short lead-times. For more information or to get a quote on MSR4013 roller conveyor chain please contact us and one of our highly-trained customer service staff will be happy to assist you!

Dimensions:
MSR4013 Chain
  • Chain #: MSR4013
  • Pitch: 4.000"
  • Pin Diameter (E): 0.438"
  • Overall Width Cottered (C2): 2.25"
  • Overall Width Riveted (C1): 2.16"
  • Sidebar Height (H): 1.12"
  • Roller Diameter (D): 1.50"
  • Sidebar Thickness (T): 0.19"
  • Distance Between Sidebars (W): 1.000"
  • Length Of Bushing (X): 1.38"
  • Average Ultimate Strength: 13,000 LBS
  • Maximum Recommended Working Load: 2,100 LBS
  • Links Per 10ft: 30
  • Weight Per Foot: 3.4 LBS
  • Pin Material: Case-Hardened Carbon Steel
  • Bushing Material: Case-Hardened Carbon Steel
  • Roller Material: Case-Hardened Carbon Steel
  • Sidebar Material: Carbon Steel
  • Style: 1

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Roller Chain
  • Extremely Durable
  • Heat-Treated or Hardened Component
  • Solid Components
Featured image
  • Chain #: MSR4013
  • Pitch: 4.000"
  • Pin Diameter (E): 0.438"
  • Overall Width Cottered (C2): 2.25"
  • Overall Width Riveted (C1): 2.16"
  • Sidebar Height (H): 1.12"
  • Roller Diameter (D): 1.50"
  • Sidebar Thickness (T): 0.19"
  • Distance Between Sidebars (W): 1.000"
  • Length Of Bushing (X): 1.38"
  • Average Ultimate Strength: 13,000 LBS
  • Maximum Recommended Working Load: 2,100 LBS
  • Links Per 10ft: 30
  • Weight Per Foot: 3.4 LBS
  • Pin Material: Case-Hardened Carbon Steel
  • Bushing Material: Case-Hardened Carbon Steel
  • Roller Material: Case-Hardened Carbon Steel
  • Sidebar Material: Carbon Steel
  • Style: 1
