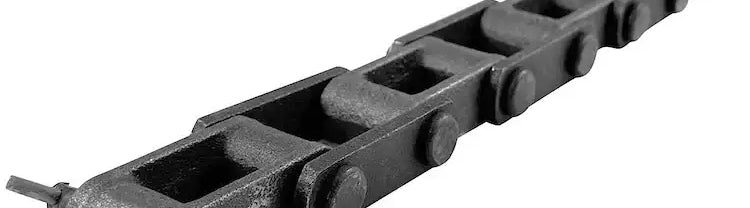

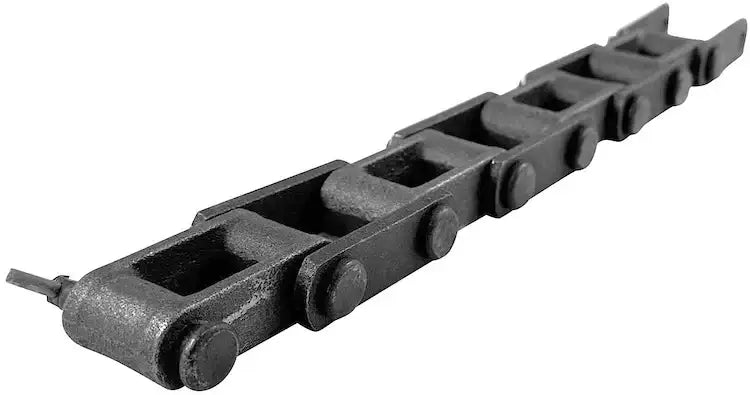

MBP132C Conveyor Chain

MBP132C Conveyor Chain

Note: Custom Cut to Length Chain Also Available
Product Code: MBP132C-CONVEYOR-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
MBP132C conveyor chain is known as a cast combination chain. This MBP132C conveyor chain is a high quality, durable, and long lasting conveyor chain that is manufactured using high quality components. MBP132C chain is used in a wide range of applications including; bucket elevators, flight conveyors, forest products, grain handling, sugar processing, and more! MBP132C combination chain links are manufactured to be symmetrical which means that this chain can travel in either direction. This MBP132C conveyor chain has the capability of conveying both abrasive and non-abrasive materials which greatly broadens its range of applications that it can be used in. Typically this chain is supplied as cottered construction furnished with pin heads all on the same side, but riveted construction is available upon request. We also offer a full line of MBP132C attachments, sprockets, and other accessories. For pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Number: MBP132C
  • Pitch (P): 6.050"
  • Overall Width Cottered (C): 6.750"
  • Overall Width Riveted: 6.500"
  • Pin Diameter (E): 1.000"
  • Sidebar Height (F): 2.000"
  • Barrel Diameter (H): 1.720"
  • Head Of Pin To Center Line (J): 3.060"
  • End Of Pin To Center Line Cottered (K): 3.380"
  • End Of Pin To Center Line Riveted: 3.250"
  • Wear Shoe Width (N): 5.880"
  • Sidebar Thickness (T): 0.500"
  • Maximum Allowable Sprocket Face (A): 3.040"
  • Barrel Length (X): 4.310"
  • Ultimate Strength: 67,500 LBS
  • Working Load: 11,250 LBS
  • Links Per 10ft Box: 20
  • Weight Per Foot: 15.7 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • MBP132C Conveyor Chain
  • High Quality MBP132C Chain
  • Extremely Durable
  • MBP132C Attachments Available
  • MBP132C Sprockets Available
  • Able To Travel In Both Directions
Featured image
  • Chain Number: MBP132C
  • Pitch (P): 6.050"
  • Overall Width Cottered (C): 6.750"
  • Overall Width Riveted: 6.500"
  • Pin Diameter (E): 1.000"
  • Sidebar Height (F): 2.000"
  • Barrel Diameter (H): 1.720"
  • Head Of Pin To Center Line (J): 3.060"
  • End Of Pin To Center Line Cottered (K): 3.380"
  • End Of Pin To Center Line Riveted: 3.250"
  • Wear Shoe Width (N): 5.880"
  • Sidebar Thickness (T): 0.500"
  • Maximum Allowable Sprocket Face (A): 3.040"
  • Barrel Length (X): 4.310"
  • Ultimate Strength: 67,500 LBS
  • Working Load: 11,250 LBS
  • Links Per 10ft Box: 20
  • Weight Per Foot: 15.7 LBS
