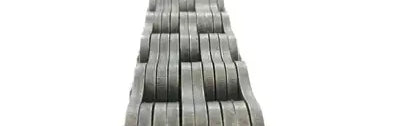

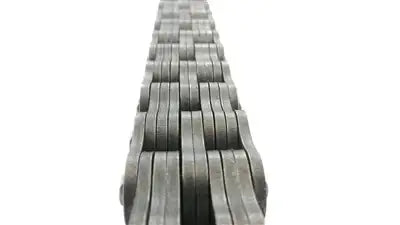

LH3246 leaf chain is manufactured to ANSI and ISO dimensional standards and is a 4X6 lacing leaf chain. LH series leaf chains are heavy-duty and designed for higher load requirements than LL or AL series chains. What separates our LH3246 chain from others is our use of high-grade carbon and alloy steel components, specific heat treatments, precision tolerances, and factory pre-loading. The combination creates an LH3246 leaf chain capable of exceptional performance and durability! LH3246 chain provides a fantastic cost-to-breaking strength ratio due to the inclusion of extra plates. Additionally, our LH3246 leaf chain directly interchanges with other brands and manufacturers. For additional information or to get a quote on the LH3246 chain, contact our customer support team, and we will be happy to assist you!
LH3246 Chain Dimensions
- Chain Size: LH3246
- Lacing: 4X6
- Pitch (P): 50.80mm
- Pin Diameter (Dp): 17.46mm
- Plate Height (Hi): 48.00mm
- Plate Thickness (S): 7.17mm
- Pin Length (A1): 80.6mm
- Tensile Strength: 664.7 kN
- Weight: 19.80 Kg/m
- Chain Size: LH3246
- Lacing: 4X6
- Pitch (P): 50.80mm
- Pin Diameter (Dp): 17.46mm
- Plate Height (Hi): 48.00mm
- Plate Thickness (S): 7.17mm
- Pin Length (A1): 80.6mm
- Tensile Strength: 664.7 kN
- Weight: 19.80 Kg/m
