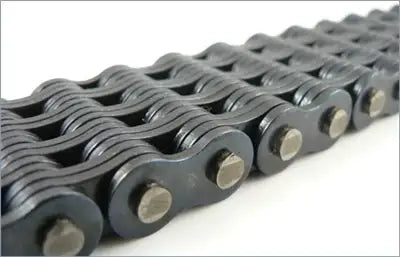

LH2488 Leaf Chain | LH2488 Chain - 8X8 Leaf Chain
Login to Request a Quote
Our LH2488 leaf chain is a heavy-duty chain that is designed to meet ANSI and ISO dimensional standards. It is an 8x8 lacing leaf chain that is engineered to handle higher load requirements than LL or AL series chains. Our LH2488 chain is made using high-grade carbon and alloy steel components, which are subjected to specific heat treatments to ensure exceptional performance and durability. The precision tolerances and factory pre-loading of our LH2488 chain further enhance its strength and reliability. The inclusion of extra plates in the LH2488 chain provides a fantastic cost-to-breaking strength ratio. Our LH2488 leaf chain is also directly interchangeable with other brands and manufacturers.
If you need additional information or would like to get a quote on the LH2488 chain, please contact our customer support team, and we will be happy to assist you!
LH2488 Chain Dimensions
- Chain Size: LH2488
- Lacing: 8X8
- Pitch (P): 38.10mm
- Pin Diameter (Dp): 12.68mm
- Plate Height (Hi): 36.00mm
- Plate Thickness (S): 5.57mm
- Pin Length (A1): 98.25mm
- Tensile Strength: 864.0 kN
- Weight: 18.64 Kg/m
- Chain Size: LH2488
- Lacing: 8X8
- Pitch (P): 38.10mm
- Pin Diameter (Dp): 12.68mm
- Plate Height (Hi): 36.00mm
- Plate Thickness (S): 5.57mm
- Pin Length (A1): 98.25mm
- Tensile Strength: 864.0 kN
- Weight: 18.64 Kg/m
