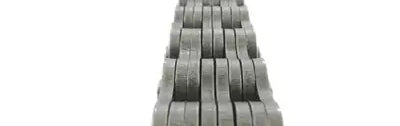

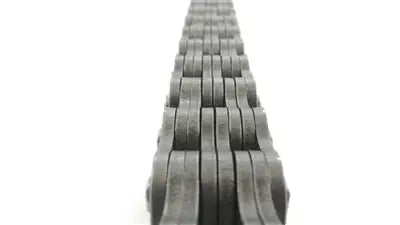

LH2444 Leaf Chain | 4X4 Chain 38.1mm Pitch - 10ft Box

LH2444 leaf chain is manufactured to ANSI and ISO dimensional standards and is a 4X4 lacing leaf chain. LH series leaf chains are heavy-duty and designed for higher load requirements than LL or AL series chains. What separates our LH2444 chain from others is our use of high-grade carbon and alloy steel components, specific heat treatments, precision tolerances, and factory pre-loading. The combination creates an LH2444 leaf chain capable of exceptional performance and durability! LH2444 chain provides a fantastic cost-to-breaking strength ratio due to the inclusion of extra plates. Additionally, our LH2444 leaf chain directly interchanges with other brands and manufacturers. For additional information or to get a quote on the LH2444 chain, contact our customer support team, and we will be happy to assist you!

LH2444 Chain Dimensions

• Chain Size: LH2444
• Lacing: 4X4
• Pitch (P): 38.10mm
• Pin Diameter (Dp): 12.68mm
• Plate Height (Hi): 36.00mm
• Plate Thickness (S): 5.57mm
• Pin Length (A1): 51.55mm
• Tensile Strength: 432.0 kN
• Weight: 9.72 Kg/m
