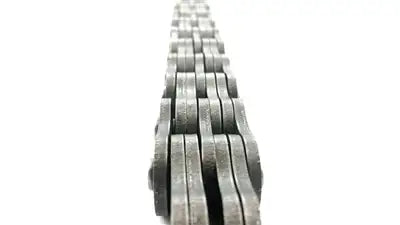

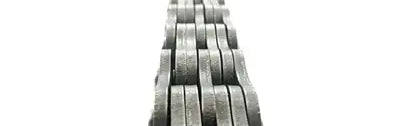

The LH2434 leaf chain adheres to ANSI and ISO dimensional standards, presenting a robust 3x4 lacing leaf chain solution. Tailored for heavy-duty applications, the LH series surpasses load requirements compared to LL or AL series chains. What distinguishes our LH2434 chain is the utilization of superior-grade carbon and alloy steel components, coupled with precise heat treatments, stringent tolerances, and factory pre-loading. This unique blend results in an LH2434 leaf chain that delivers outstanding performance and prolonged durability. The incorporation of extra plates enhances the cost-to-breaking strength ratio, making the LH2434 chain an economically efficient choice.
Our LH2434 leaf chain seamlessly interchanges with counterparts from different brands and manufacturers. For more details or to request a quote for the LH0823 chain, feel free to reach out to our customer support team. We are here to provide assistance and ensure your satisfaction!
LH2434 Chain Dimensions
- Chain Size: LH2434
- Lacing: 3X4
- Pitch (P): 38.10mm
- Pin Diameter (Dp): 12.68mm
- Plate Height (Hi): 36.00mm
- Plate Thickness (S): 5.57mm
- Pin Length (A1): 45.95mm
- Tensile Strength: 360.2 kN
- Weight: 8.55 Kg/m
- Chain Size: LH2434
- Lacing: 3X4
- Pitch (P): 38.10mm
- Pin Diameter (Dp): 12.68mm
- Plate Height (Hi): 36.00mm
- Plate Thickness (S): 5.57mm
- Pin Length (A1): 45.95mm
- Tensile Strength: 360.2 kN
- Weight: 8.55 Kg/m
