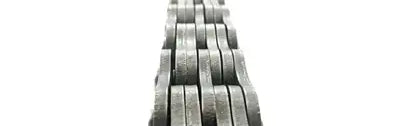

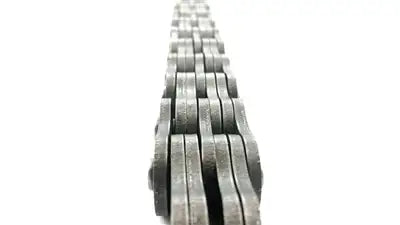

LH1234 Leaf Chain | 3X4 Chain 19.05mm Pitch - 10ft Box
Login to Request a Quote
Our LH1234 leaf chain is a heavy-duty chain that is designed to meet ANSI and ISO dimensional standards. It is a 3x4 lacing leaf chain that is engineered to handle higher load requirements than LL or AL series chains. Our LH1234 chain is made using high-grade carbon and alloy steel components, which are subjected to specific heat treatments to ensure exceptional performance and durability. The precision tolerances and factory pre-loading of our LH1234 chain further enhance its strength and reliability. The inclusion of extra plates in the LH1234 chain provides a fantastic cost-to-breaking strength ratio. Our LH1234 leaf chain is also directly interchangeable with other brands and manufacturers.
If you need additional information or would like to get a quote on the LH1234 chain, please contact our customer support team, and we will be happy to assist you!
LH1234 Chain Dimensions
- Chain Size: LH1234
- Lacing: 3X4
- Pitch (P): 19.05mm
- Pin Diameter (Dp): 7.93mm
- Plate Height (Hi): 18.00mm
- Plate Thickness (S): 3.25mm
- Pin Length (A1): 27.40mm
- Tensile Strength: 96.2 kN
- Weight: 2.52 Kg/m
- Chain Size: LH1234
- Lacing: 3X4
- Pitch (P): 19.05mm
- Pin Diameter (Dp): 7.93mm
- Plate Height (Hi): 18.00mm
- Plate Thickness (S): 3.25mm
- Pin Length (A1): 27.40mm
- Tensile Strength: 96.2 kN
- Weight: 2.52 Kg/m
