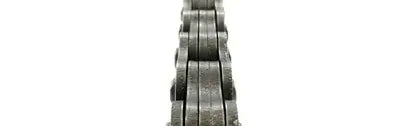

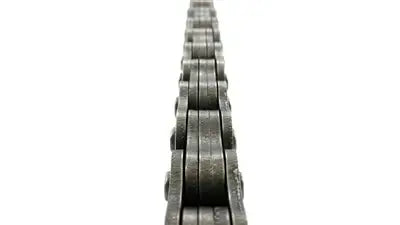

The LH1223 leaf chain stands out within ANSI and ISO dimensional standards, representing a robust 2x3 lacing leaf chain solution. Crafted for heavy-duty applications, the LH series exceeds load requirements compared to LL or AL series chains. What distinguishes our LH1223 chain is the utilization of top-tier carbon and alloy steel components, subject to specific heat treatments, precise tolerances, and factory pre-loading. This meticulous combination yields an LH1223 leaf chain that delivers exceptional performance and extended durability.
Highlighted by its inclusion of extra plates, the LH1223 chain boasts an impressive cost-to-breaking strength ratio. Moreover, this leaf chain seamlessly exchanges with counterparts from different brands and manufacturers.
For additional information or to request a quote for the LH1223 chain, feel free to contact our customer support team. We are dedicated to assisting you with your specific requirements!
LH1223 Chain Dimensions
- Chain Size: LH1223
- Lacing: 2X3
- Pitch (P): 19.05mm
- Pin Diameter (Dp): 7.93mm
- Plate Height (Hi): 18.00mm
- Plate Thickness (S): 3.25mm
- Pin Length (A1): 20.70mm
- Tensile Strength: 62.6 kN
- Weight: 1.81 Kg/m
- Chain Size: LH1223
- Lacing: 2X3
- Pitch (P): 19.05mm
- Pin Diameter (Dp): 7.93mm
- Plate Height (Hi): 18.00mm
- Plate Thickness (S): 3.25mm
- Pin Length (A1): 20.70mm
- Tensile Strength: 62.6 kN
- Weight: 1.81 Kg/m
