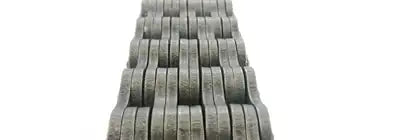

Our LH1066 leaf chain is a heavy-duty chain that is designed to meet ANSI and ISO dimensional standards. It is a 6x6 lacing leaf chain that is engineered to handle higher load requirements than LL or AL series chains. Our LH1066 chain is made using high-grade carbon and alloy steel components, which are subjected to specific heat treatments to ensure exceptional performance and durability. The precision tolerances and factory pre-loading of our LH1066 chain further enhance its strength and reliability. The inclusion of extra plates in the LH1066 chain provides a fantastic cost-to-breaking strength ratio. Our LH1066 leaf chain is also directly interchangeable with other brands and manufacturers.
If you need additional information or would like to get a quote on the LH1066 chain, please contact our customer support team, and we will be happy to assist you!
LH1066 Chain Dimensions
- Chain Size: LH1066
- Lacing: 6X6
- Pitch (P): 15.875mm
- Pin Diameter (Dp): 5.94mm
- Plate Height (Hi): 14.75mm
- Plate Thickness (S): 2.40mm
- Chain Size: LH1066
- Lacing: 6X6
- Pitch (P): 15.875mm
- Pin Diameter (Dp): 5.94mm
- Plate Height (Hi): 14.75mm
- Plate Thickness (S): 2.40mm
