Specialty Chain > ANSI Leaf Chains > LH Series Leaf Chain
LH0866 Leaf Chain | 6X6 Chain 12.70mm Pitch - 10ft Box
Login to Request a Quote

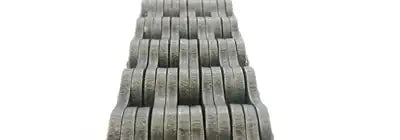

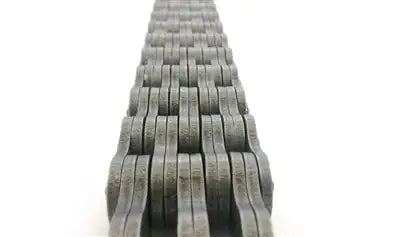

Our LH0866 leaf chain is a heavy-duty chain that is designed to meet ANSI and ISO dimensional standards. It is a 6X6 lacing leaf chain that is engineered to handle higher load requirements than LL or AL series chains. Our LH0866 chain is made using high-grade carbon and alloy steel components, which are subjected to specific heat treatments to ensure exceptional performance and durability. The precision tolerances and factory pre-loading of our LH0866 chain further enhance its strength and reliability. The inclusion of extra plates in the LH0866 chain provides a fantastic cost-to-breaking strength ratio. Our LH0866 leaf chain is also directly interchangeable with other brands and manufacturers.
If you need additional information or would like to get a quote on the LH0866 chain, please contact our customer support team, and we will be happy to assist you!
LH0866 Chain Dimensions
- Chain Size: LH0866
- Lacing: 6X6
- Pitch (P): 12.70mm
- Pin Diameter (Dp): 5.09mm
- Plate Height (Hi): 11.65mm
- Plate Thickness (S): 2.04mm
- Chain Size: LH0866
- Lacing: 6X6
- Pitch (P): 12.70mm
- Pin Diameter (Dp): 5.09mm
- Plate Height (Hi): 11.65mm
- Plate Thickness (S): 2.04mm
