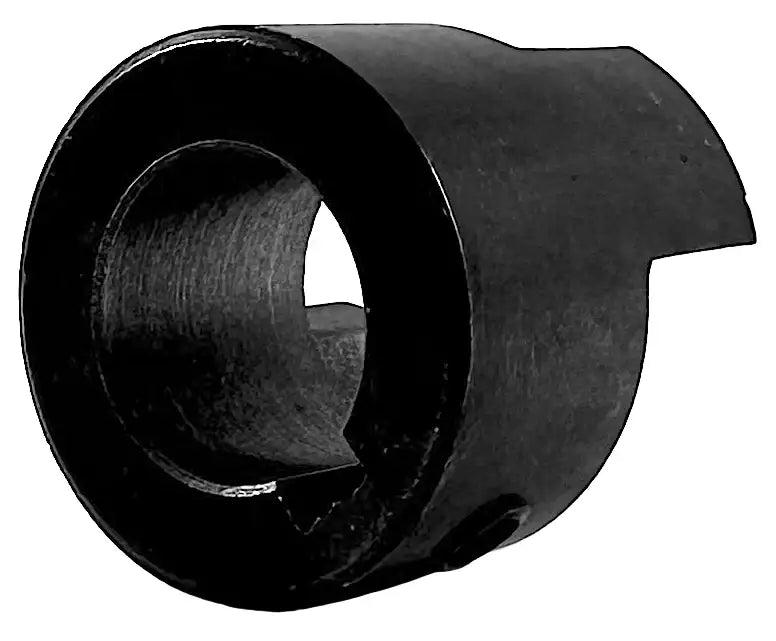

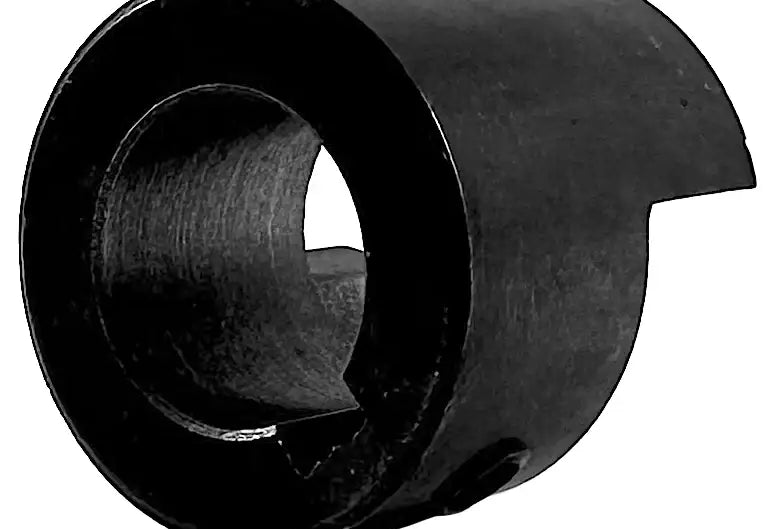

L070 Coupling Half - 11/16" | L070 Hub X 11/16"

The L070 coupling half with a 11/16" bore with a key-way is also commonly called an L070 coupling hub. The compact yet robust design of this 11/16" bore L070 coupling half makes it highly versatile across a broad spectrum of applications, including; pumps, blowers, compressors, mixers, motion control (servo), and more!. Depending on the insert type used, a complete L070 coupling assembly is capable of optimal operation with an angular misalignment from 0.5 to 1.0 degrees and a parallel misalignment of 0.10" to 0.15". This advantage is due to the greater radial softness. Additionally, L070 couplings utilize a no metal-on-metal design (excluding bronze inserts), drastically improving their wear life compared to other coupling types. At USA Roller Chain, we pride ourselves in supplying high-quality industrial power transmission components, and our L070 coupling halves with a 11/16" bore and key are no exception. Contact our customer support team for additional information or bulk quantity pricing; we will gladly assist you!

L070 Coupling Half 11/16" Dimensions

• Part #: L070
• Type: 1"
• Bore Size: 11/16"
• Hub Dia. (A): 1.375"
• Overall Length (B): 2.000"
• Distance Between Flanges (C): 0.500"
• Length Thru Bore (D): 0.770"
• Weight: 0.56 LBS
• Set Screw Size: 11/16"-20UNCX11/16"
• Set Screw Quantity: 2
