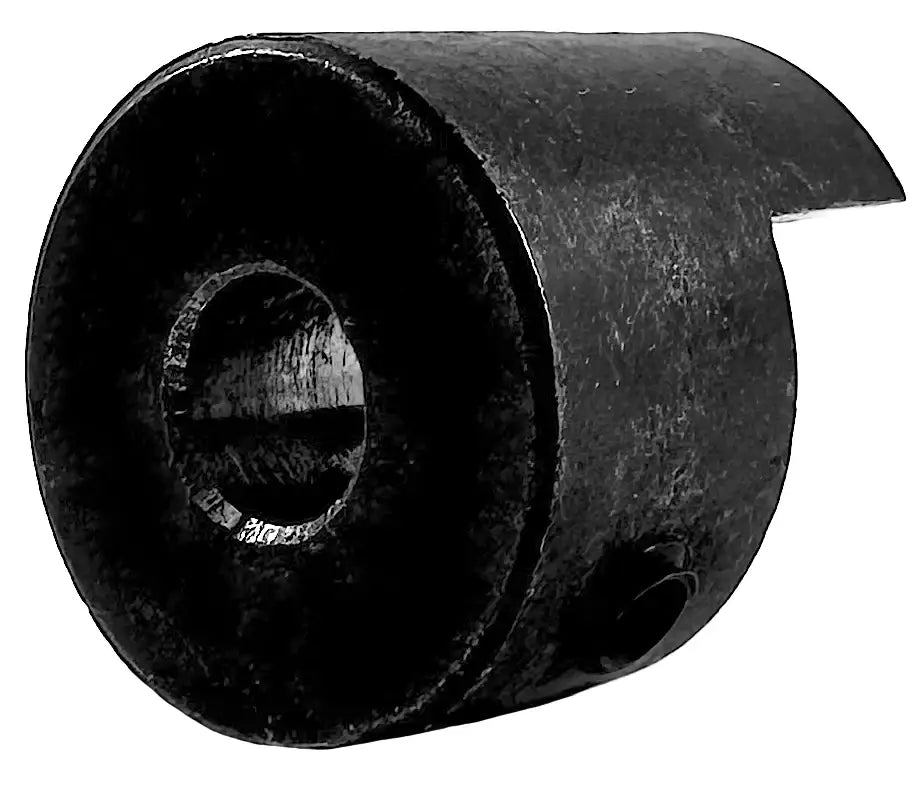

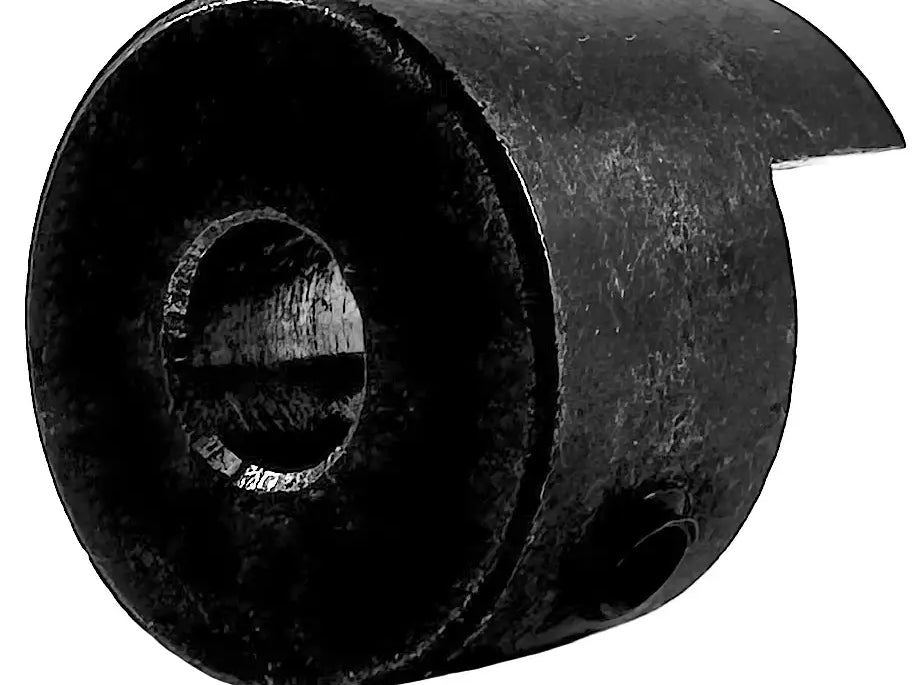

L050 Coupling Half - 1/4" (No-Key) | L050 Hub X 1/4"

The L050 coupling half with a 1/4" bore (with no key) is also commonly called an L050 coupling hub. The compact yet robust design of this 1/4" bore L050 coupling half makes it highly versatile across a broad spectrum of applications, including; pumps, blowers, compressors, mixers, motion control (servo), and more!. Depending on the insert type used, a complete L035 coupling assembly is capable of optimal operation with an angular misalignment from 0.5 to 1.0 degrees and a parallel misalignment of 0.10" to 0.15". This advantage is due to the greater radial softness. Additionally, L050 couplings utilize a no metal-on-metal design (excluding bronze inserts), drastically improving their wear life compared to other coupling types. At USA Roller Chain, we pride ourselves in supplying high-quality industrial power transmission components, and our L050 coupling halves with a 1/4" bore and no key is no exception. Contact our customer support team for additional information or bulk quantity pricing; we will gladly assist you!

L050 Coupling Half 1/4" Dimensions

• Part #: L050
• Type: 1"
• Bore Size: 1/4"
• Hub Dia. (A): 1.063"
• Overall Length (B): 1.721"
• Distance Between Flanges (C): 0.470"
• Length Thru Bore (D): 0.625"
• Weight: 0.29 LBS
• Set Screw Size: 1/4"-20UNCX1/4"
• Set Screw Quantity: 1
