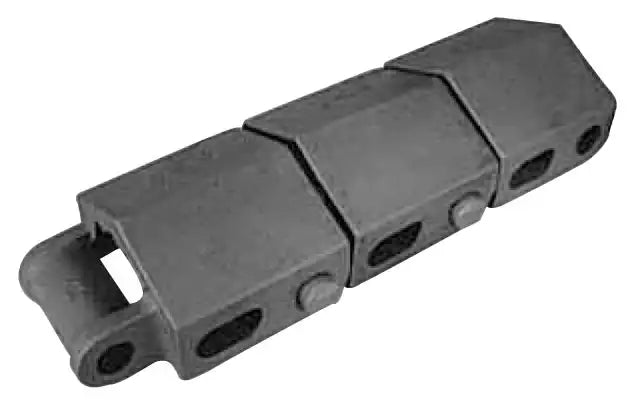

H78B Rooftop Chain

H78B Rooftop Chain

Note: Custom Cut to Length Chain Also Available
Product Code: H78B-CHAIN
Shipping calculated at checkout.
Other Customers Viewed
H78 Chain Sprockets
H78 Chain Sprockets
Login
View full details
Description
Specification
H78B chain is a rooftop/ transfer chain that is manufactured out of Pearlitic Malleable iron, and is a common in-stock item. This H78B chain is a heavy duty, extremely durable, and high quality rooftop transfer chain with a tensile strength of 20,800 LBS. Our H-Series chains are manufactured to perform and hold up in transfer conveyor applications, as well as abrasive atmospheres. The sidebars of H78B chain feature a strengthened cross section providing an added benefit of a wear surface to prolong chain service life when operating in troughs or over floors and slider beds. In addition to the H78B chain we also have a full line of H78B sprockets for sale. For more information or o get a quote please contact us and we will be happy to assist you.

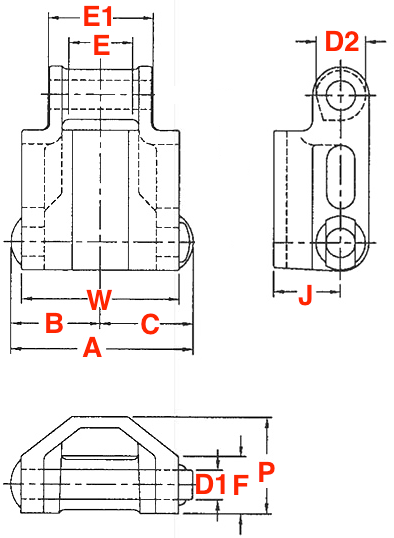

Dimensions:

  • Chain Size: H78B
  • Pitch: 2.609"
  • Pin Diameter (D1): 0.500"
  • Sidebar Height (H): 1.00"
  • Barrel Diameter (D2): 0.88"
  • Maximum Allowable Sprocket Face (E): 1.12"
  • Overall Height (P): 1.69"
  • Maximum Recommended Working Load: 2,820 LBS
  • Overall Width (A): 3.25"
  • End Of Pin To Center Line (B): 1.62"
  • Head Of Pin To Center Line (C): 1.56"
  • Overall Length of Barrel (E1): 1.88"
  • Center Of Pin To Top (J): 1.12"
  • Width Of Top (W): 2.81"
  • Style Of Top: Flat
  • Links Per 10ft: 46
  • Weight: 6.1 LBS
  • Average Ultimate Strength: 20,800 LBS
  • Note: Available In Riveted Construction Only

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • Extremely Durable
  • Features Heat Treated Pins
  • Usable In Abrasive Environments
  • Typically In-Stock
Featured image
  • Chain Size: H78B
  • Pitch: 2.609"
  • Pin Diameter (D1): 0.500"
  • Sidebar Height (H): 1.00"
  • Barrel Diameter (D2): 0.88"
  • Maximum Allowable Sprocket Face (E): 1.12"
  • Overall Height (P): 1.69"
  • Maximum Recommended Working Load: 2,820 LBS
  • Overall Width (A): 3.25"
  • End Of Pin To Center Line (B): 1.62"
  • Head Of Pin To Center Line (C): 1.56"
  • Overall Length of Barrel (E1): 1.88"
  • Center Of Pin To Top (J): 1.12"
  • Width Of Top (W): 2.81"
  • Style Of Top: Flat
  • Links Per 10ft: 46
  • Weight: 6.1 LBS
  • Average Ultimate Strength: 20,800 LBS
  • Note: Available In Riveted Construction Only
