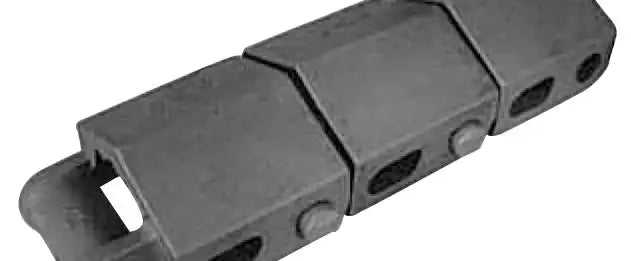

H138 Rooftop Chain

H138 Rooftop Chain

Note: Custom Cut to Length Chain Also Available
Product Code: H138-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
H138 chain is a rooftop/ transfer chain that is manufactured out of Pearlitic Malleable iron, and is a common in-stock item. This H138 chain is a heavy duty, extremely durable, and high quality rooftop transfer chain with a tensile strength of 19,500 LBS. Our H-Series chains are manufactured to perform and hold up in transfer conveyor applications, as well as abrasive atmospheres. The sidebars of H138 chain feature a strengthened cross section providing an added benefit of a wear surface to prolong chain service life when operating in troughs or over floors and slider beds. In addition to the H138 chain we also have a full line of H138 sprockets for sale. For more information or o get a quote please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: H138
  • Pitch: 4.00"
  • Pin Diameter (D1): 0.50"
  • Sidebar Height (H): 1.06"
  • Barrel Diameter (D2): 1.00"
  • Maximum Allowable Sprocket Face (E): 1.00"
  • Overall Height (P): 1.69"
  • Maximum Recommended Working Load: 2,440 LBS
  • Overall Width (A): 3.25"
  • End Of Pin To Center Line (B): 1.62"
  • Head Of Pin To Center Line (C): 1.62"
  • Overall Length of Barrel (E1): 1.62"
  • Center Of Pin To Top (J): 1.16"
  • Width Of Top (W): 2.81"
  • Style Of Top: Flat
  • Links Per 10ft: 30
  • Weight: 5.8 LBS
  • Average Ultimate Strength: 19,500 LBS
  • Note: Available In Riveted Construction Only

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • Extremely Durable
  • Features Heat Treated Pins
  • Usable In Abrasive Environments
  • Typically In-Stock

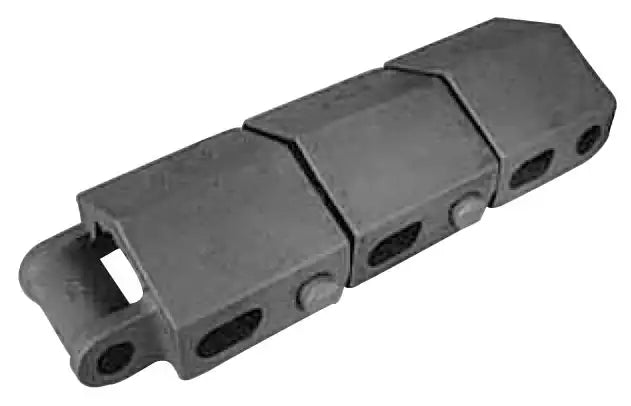

Featured image
  • Chain Size: H138
  • Pitch: 4.00"
  • Pin Diameter (D1): 0.50"
  • Sidebar Height (H): 1.06"
  • Barrel Diameter (D2): 1.00"
  • Maximum Allowable Sprocket Face (E): 1.00"
  • Overall Height (P): 1.69"
  • Maximum Recommended Working Load: 2,440 LBS
  • Overall Width (A): 3.25"
  • End Of Pin To Center Line (B): 1.62"
  • Head Of Pin To Center Line (C): 1.62"
  • Overall Length of Barrel (E1): 1.62"
  • Center Of Pin To Top (J): 1.16"
  • Width Of Top (W): 2.81"
  • Style Of Top: Flat
  • Links Per 10ft: 30
  • Weight: 5.8 LBS
  • Average Ultimate Strength: 19,500 LBS
  • Note: Available In Riveted Construction Only
