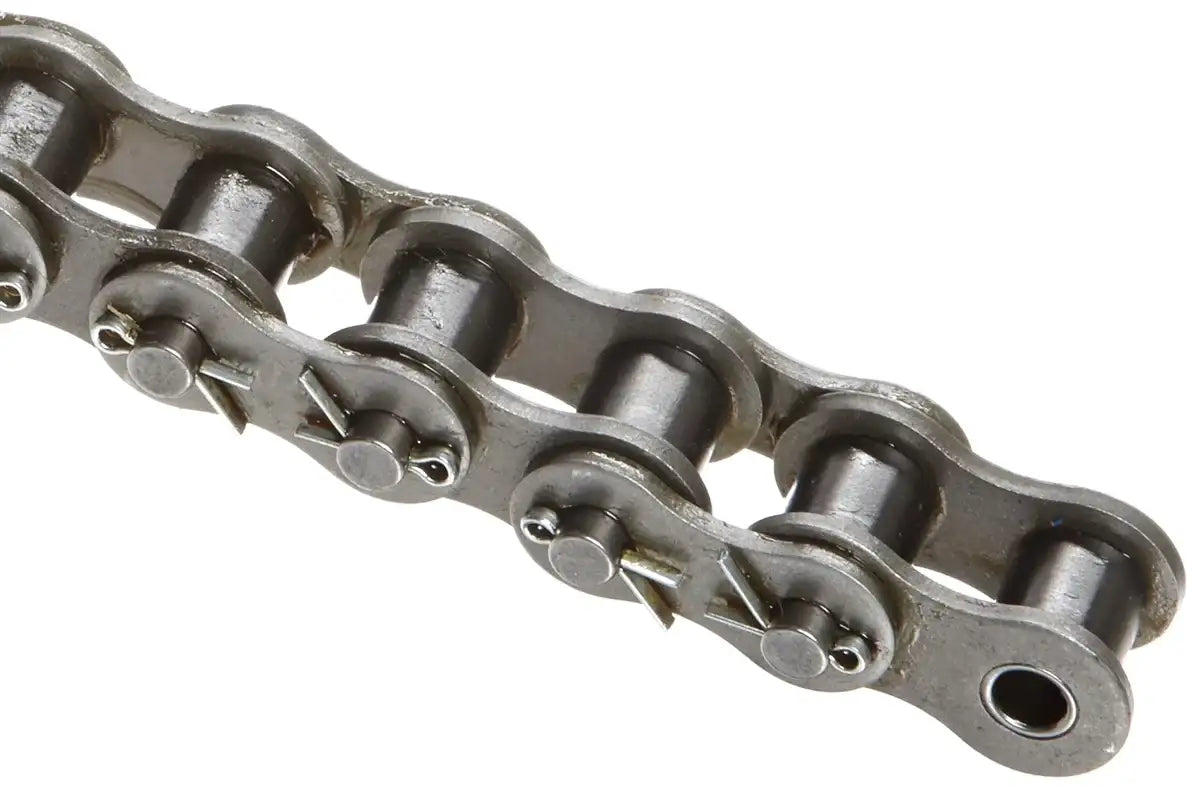

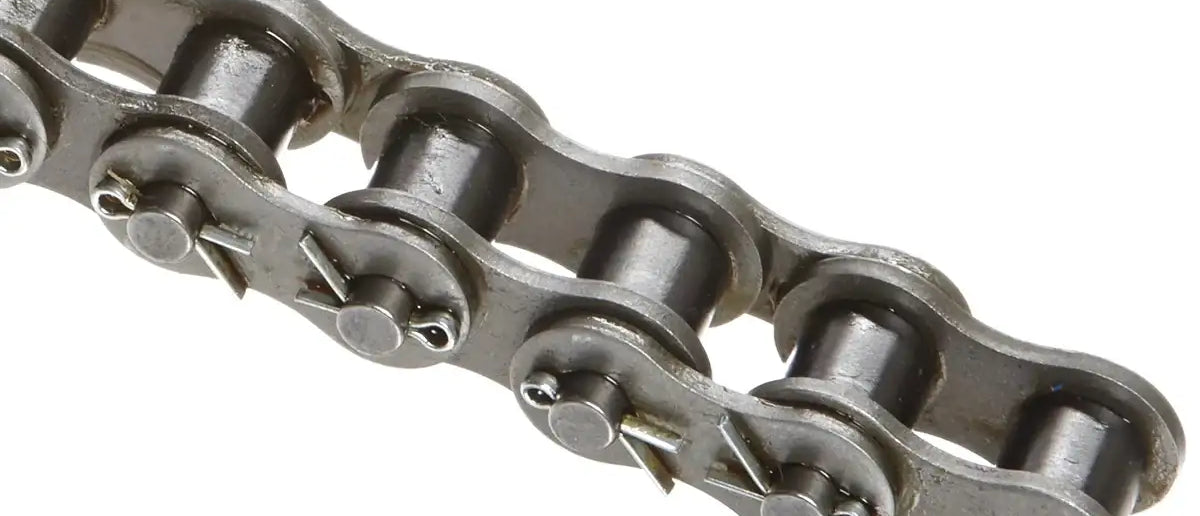

Economy Plus #80 Cottered Roller Chain - 10ft Box

Economy Plus #80 cottered roller chain is a quality low cost ANSI standard roller chain. This #80 cottered roller chain features heat-treated components including the pins and side plates, the tensile strength of this chain is 14,500lbs, and the chain features solid rollers. The manufacturing process for this chain has made it have high strengths and increase fatigue. Economy Plus #80 cottered roller chain is commonly supplied in 10ft boxes but is also available on 50ft reels, 100ft reels, and as custom lengths per request. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. USA Roller Chain and Sprockets also offers a full line of attachments for this chain and a full line of high quality sprockets! For more information or if you need a custom length please contact us.

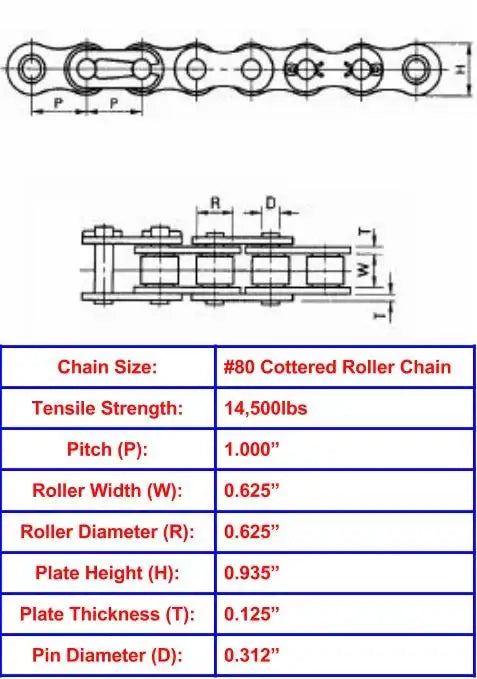

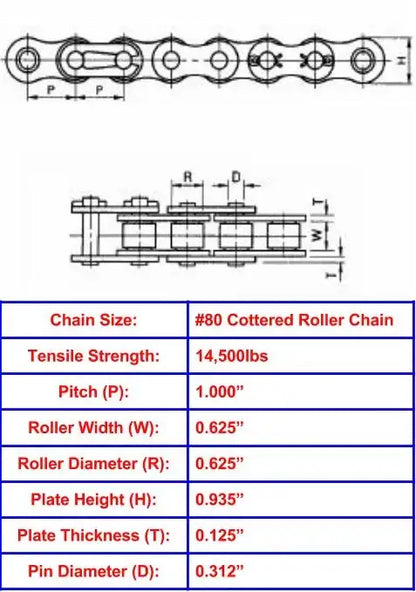

Economy Plus #80 Cottered Roller Chain Dimensions

• Chain Size: #80 Cottered Roller Chain
• Tensile Strength: 14,500lbs
• Pitch (P): 1.000"
• Roller Width (W): 0.625"
• Roller Diameter (R): 0.625"
• Plate Height (H): 0.935"
• Plate Thickness (T): 0.125"
• Pin Diameter (D): 0.312"
