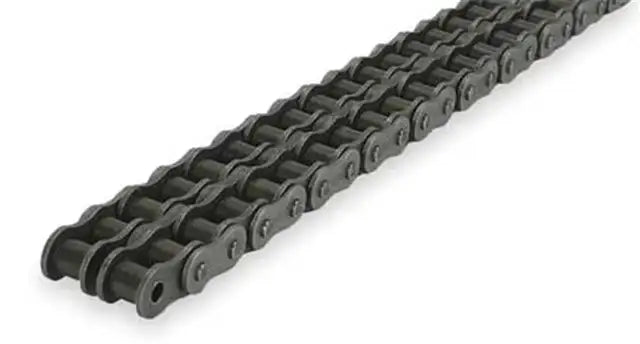

#60H-2 Heavy Double Strand Roller Chain - 10ft Box

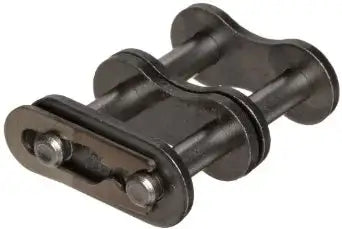

This roller chain is ANSI size #60H-2 double strand heavy roller chain, it fully meets all ANSI standards. Economy Plus Series #60H-2 double strand heavy roller chain has been heat-treated & shot peened for increased working life, fatigue, and overall strength. This #60-2H heavy roller chain is commonly found used in many industrial applications and agriculture applications. Economy Plus #60H-2 double strand heavy roller chain is available in 10ft boxes or larger footage reels including connecting links. The "H" designates that his chain has a slightly thicker side plate and is part of the heavy series of roller chains. Having the thicker side plate increases strength, shock load resistance, and fatigue. #60H-2 double strand heavy roller chain can also be cut and assembled to specific lengths if needed.

• Chain Size: #60-2H Heavy
• Tensile Strength: 17,900lbs

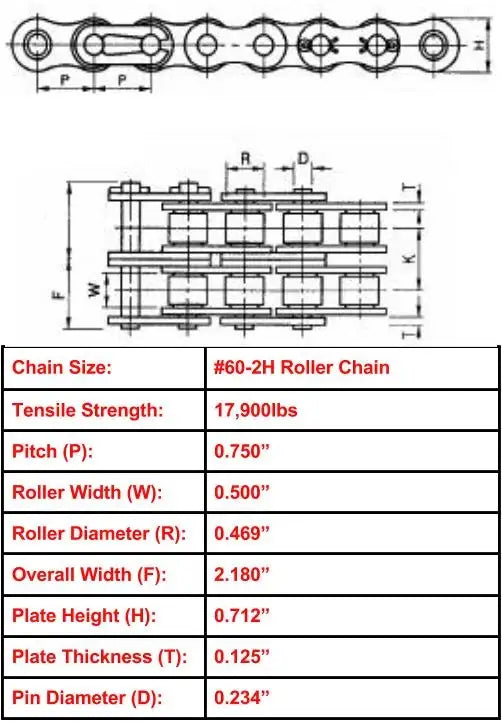

• **NOTE: ALL DIMENSIONS ARE GIVEN IN INCHES**
• Pitch (P): 0.750
• Roller Width (W): 0.500
• Roller Diameter (R): 0.469
• Overall Chain Width (F): 2.180
• Link Plate Height (H): 0.712
• Link Plate Thickness (T): 0.125
• Pin Diameter (D): 0.234
• Specifications Met: ANSI Standards
