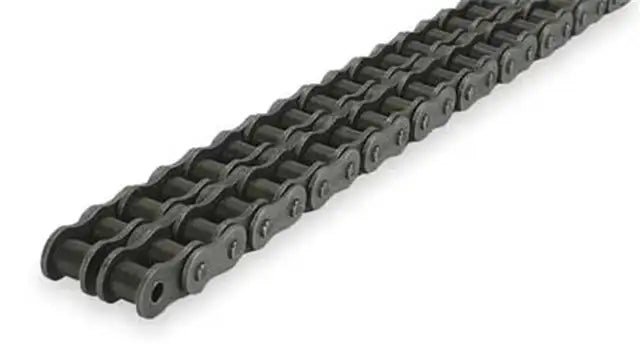

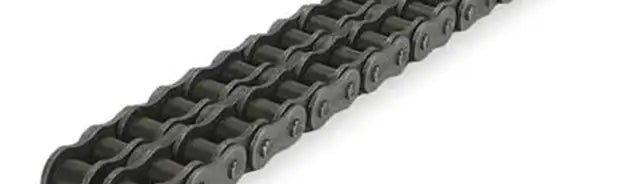

Economy Plus #200-2H Heavy Double Strand Roller Chain

#200H-2 Heavy Double Strand Roller Chain - 10ft Box

Roller Chain > Roller Chain by Size > #200 Roller Chain

#200H-2 Heavy Double Strand Roller Chain - 10ft Box

Name: #200H-2 Heavy Double Strand Roller Chain - 10ft Box
Brand: USA ROLLER CHAIN
SKU: ECO-200H-2-10FT
Availability: InStock

Note: Custom Cut to Length Chain Also Available

SKU: ECO-200H-2-10FT

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Call to order

Don’t see what you need?

Call us

Buy it With:

#200H-2 Heavy Double Strand Roller Chain - 10ft Box Features

#200H-2 Heavy Double Strand Roller Chain - 10ft Box Specifications

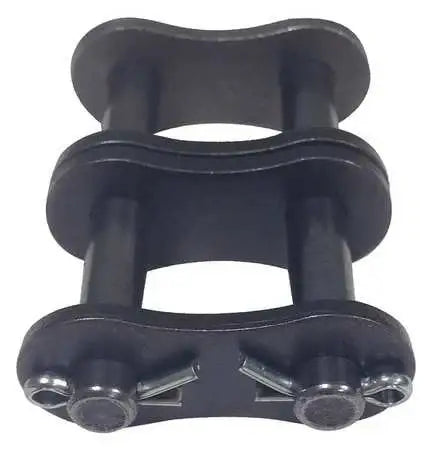

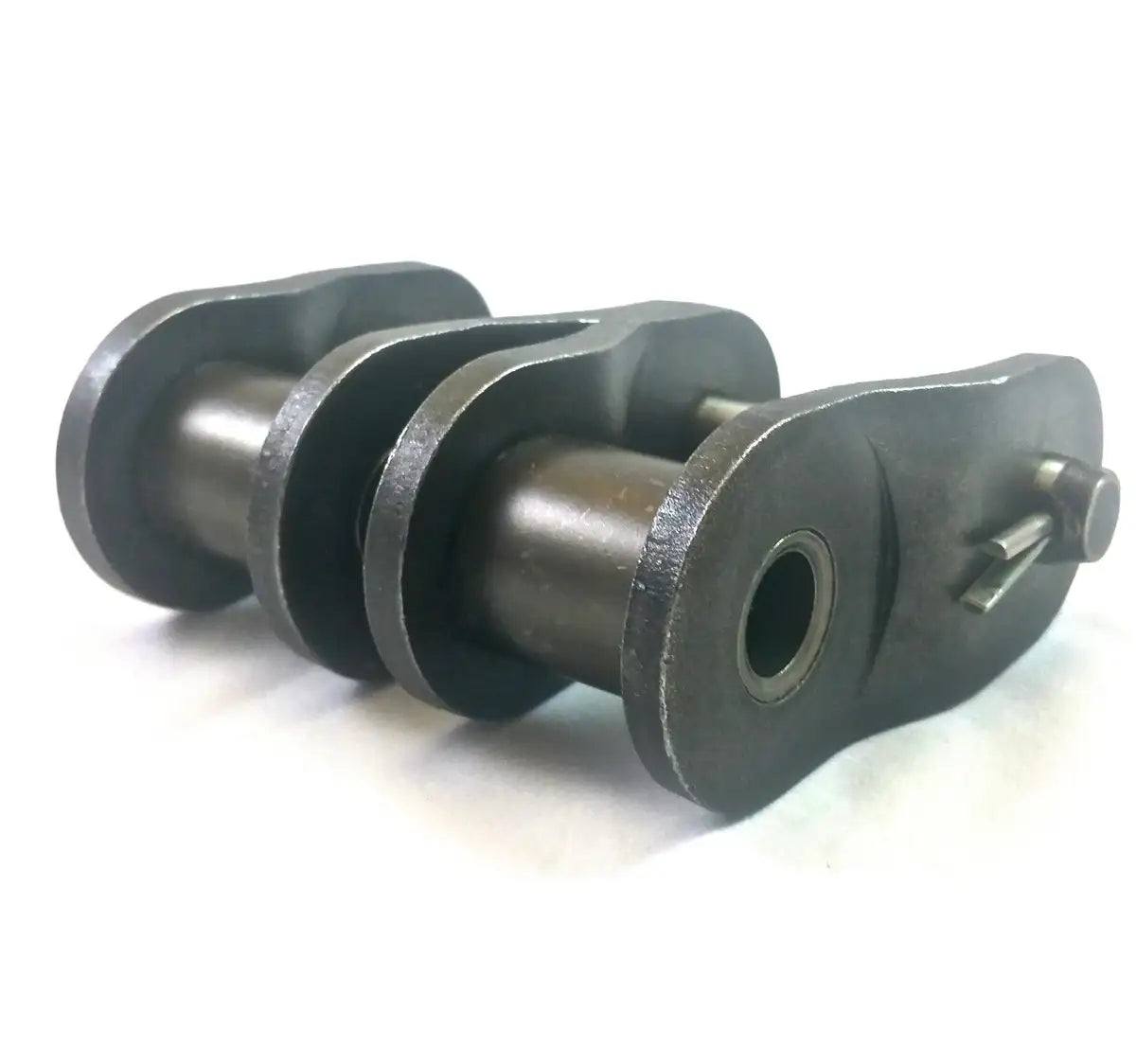

This roller chain is ANSI size #200H-2 double strand heavy roller chain, it fully meets all ANSI standards. Economy Plus Series #200H-2 double strand heavy roller chain has been heat-treated & shot peened for increased working life, fatigue, and overall strength. This #200H-2 heavy roller chain is commonly found used in many industrial applications and agriculture applications. Economy Plus #200H-2 double strand heavy roller chain is available in 10ft boxes or larger footage reels including connecting links. The "H" designates that his chain has a slightly thicker side plate and is part of the heavy series of roller chains. Having the thicker side plate increases strength, shock load resistance, and fatigue. #200-2H double strand heavy roller chain can also be cut and assembled to specific lengths if needed.

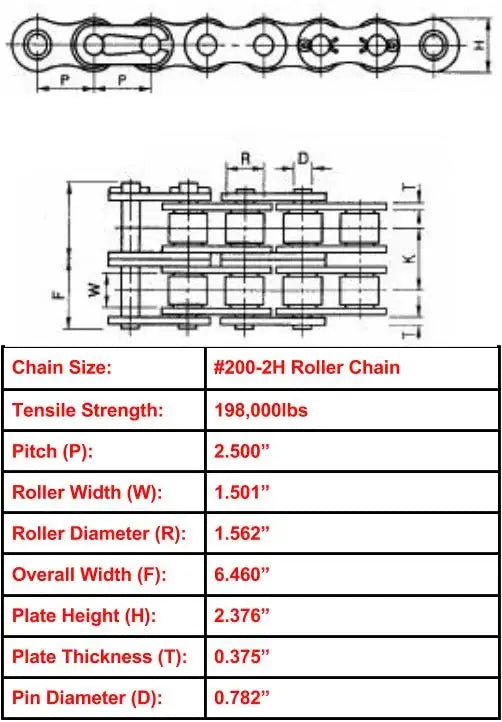

Chain Size: #200-2H Heavy
Tensile Strength: 198,000lbs
**NOTE: ALL DIMENSIONS ARE GIVEN IN INCHES**
Pitch (P): 2.500
Roller Width (W): 1.501
Roller Diameter (R): 1.562
Overall Chain Width (F): 6.460
Link Plate Height (H): 2.376
Link Plate Thickness (T): 0.375
Pin Diameter (D): 0.782
Specifications Met: ANSI Standards
