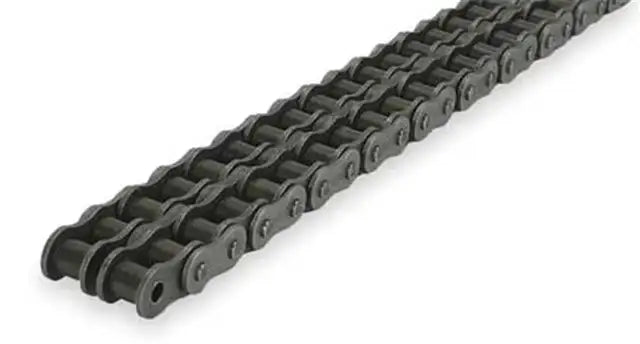

#140H-2 Heavy Double Strand Roller Chain - 10ft Box

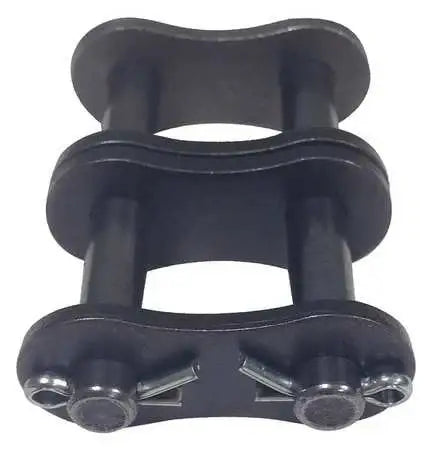

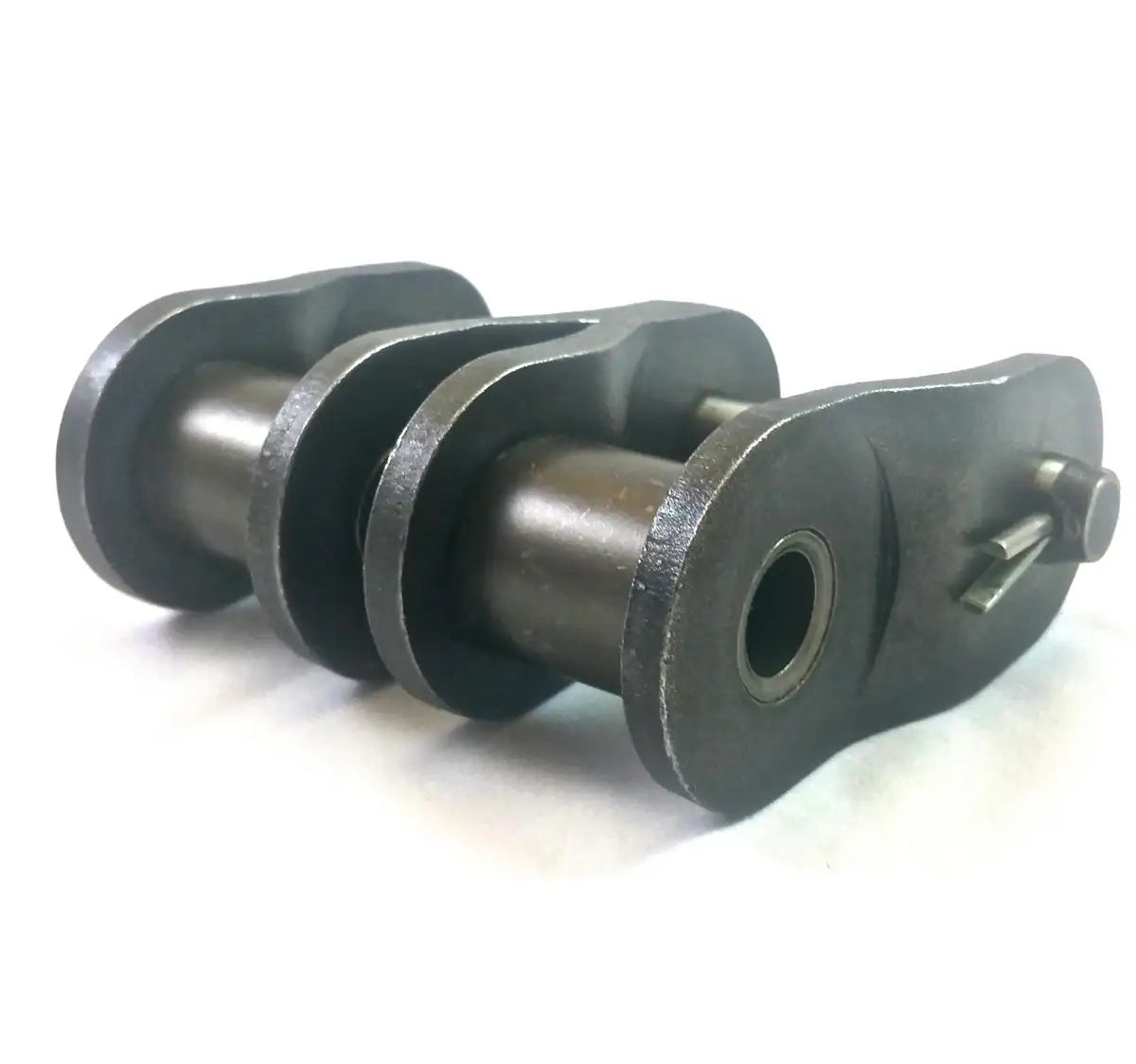

This roller chain is ANSI size #140H-2 double strand heavy roller chain, it fully meets all ANSI standards. Economy Plus Series #140H-2 double strand heavy roller chain has been heat-treated & shot peened for increased working life, fatigue, and overall strength. This #140H-2 heavy roller chain is commonly found used in many industrial applications and agriculture applications. Economy Plus #140H-2 double strand heavy roller chain is available in 10ft boxes or larger footage reels including connecting links. The "H" designates that his chain has a slightly thicker side plate and is part of the heavy series of roller chains. Having the thicker side plate increases strength, shock load resistance, and fatigue. #140-2H double strand heavy roller chain can also be cut and assembled to specific lengths if needed.

• Chain Size: #140-2H Heavy
• Tensile Strength: 99,000lbs

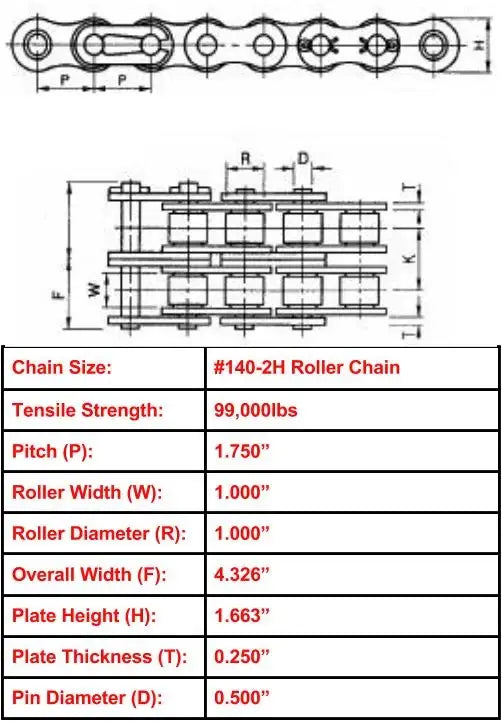

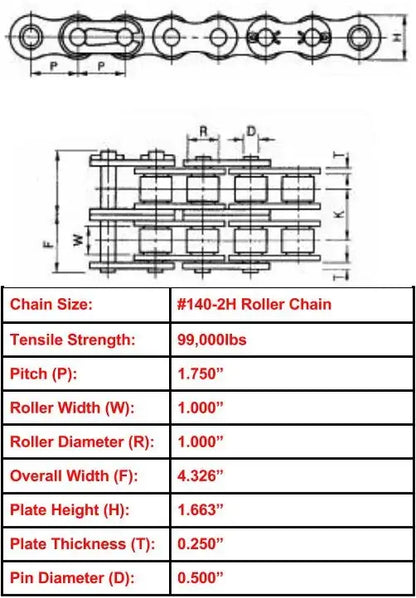

• **NOTE: ALL DIMENSIONS ARE GIVEN IN INCHES**
• Pitch (P): 1.750
• Roller Width (W): 1.000
• Roller Diameter (R): 1.000
• Overall Chain Width (F): 4.326
• Link Plate Height (H): 1.663
• Link Plate Thickness (T): 0.250
• Pin Diameter (D): 0.500
• Specifications Met: ANSI Standards
