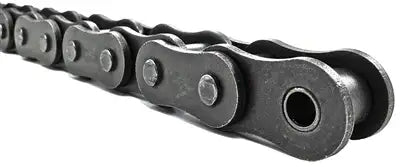

Metric 10B Chain - 10ft Box
Login to Request a Quote
10B roller chain is a 15.875mm pitch ISO metric roller chain that conforms to British Standards (BS). Our high-quality 10B chain is manufactured from high-grade carbon and alloy steels for superior performance, strength, and lifespan. We also utilize specific manufacturing techniques for improved function and reduced elongation when creating our precision 10B chain. Something important to note is that this chain uses high-strength side bars for improved load ratings and reduce elongation. Dimensionally the same as other brands, our 10B chain demonstrates above-average features and benefits at an economical price point. For additional information or bulk quantities of the 10B roller chain, contact our customer support team, and we will gladly assist you!
10B Roller chain Dimensions
- Part #: 10B
- Pitch (P): 15.875mm
- Roller Width (R): 9.65mm
- Roller Diameter (D): 10.16mm
- Overall Width (W): 19.60mm
- Connecting Link Overall Width (X): 23.70mm
- Plate Height (H): 14.70mm
- Plate Thickness (T): 1.70mm
- Pin Diameter (L): 5.08mm
- Weight: 0.9 kG/ m
- Part #: 10B
- Pitch (P): 15.875mm
- Roller Width (R): 9.65mm
- Roller Diameter (D): 10.16mm
- Overall Width (W): 19.60mm
- Connecting Link Overall Width (X): 23.70mm
- Plate Height (H): 14.70mm
- Plate Thickness (T): 1.70mm
- Pin Diameter (L): 5.08mm
- Weight: 0.9 kG/ m
