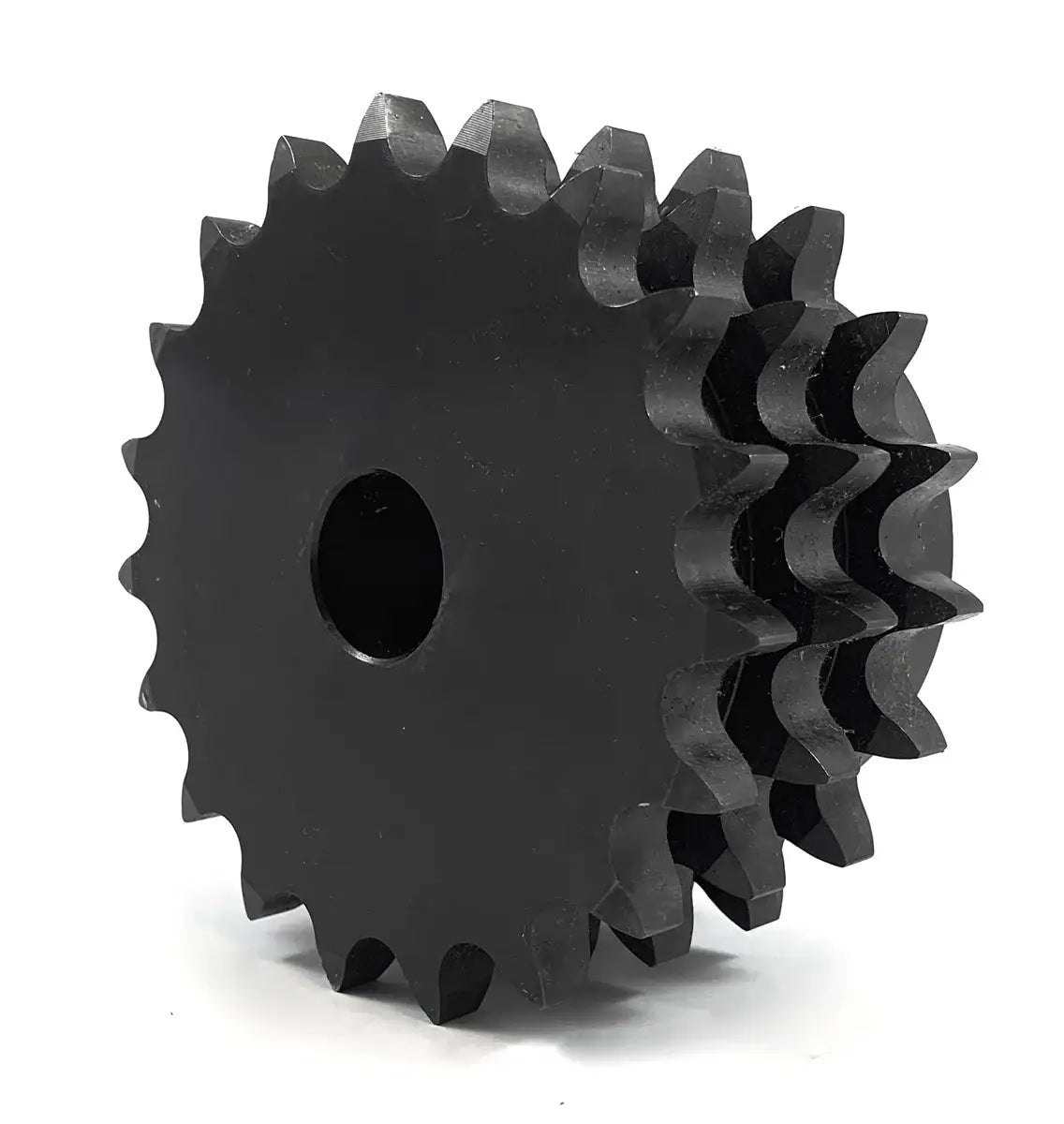

Triple E50B22H Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: E50B22H-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Triple E50B22H Sprocket Features
Triple E50B22H Sprocket Specifications
E50B22H Sprocket is a triple B-Hub roller chain sprocket with 22 teeth and a stock bore. Our triple E50B22H sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. The sprocket also has heat-treated hardened teeth that further increases the working life and durability. Besides the sprocket, we also stock 50-3 roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E50B22H Sprocket Dimensions
- Sprocket Size: E50B22H
- Tooth Count: 22
- Outside Diameter: 4.720"
- Sprocket Type: B
- Stock Bore: 1"
- Recommend Maximum Bore: 2-3/8"
- Hub Diameter: 3-9/16"
- Length Thru Bore: 2-1/2"
- Sprocket Weight: 8.13 LBS
- Sprocket Size: E50B22H
- Tooth Count: 22
- Outside Diameter: 4.720"
- Sprocket Type: B
- Stock Bore: 1"
- Recommend Maximum Bore: 2-3/8"
- Hub Diameter: 3-9/16"
- Length Thru Bore: 2-1/2"
- Sprocket Weight: 8.13 LBS
