Power Transmission > Sprockets > Roller Chain Sprockets > Multi Strand Roller Chain Sprockets > Triple Roller Chain Sprockets > 160-3 Triple Sprockets

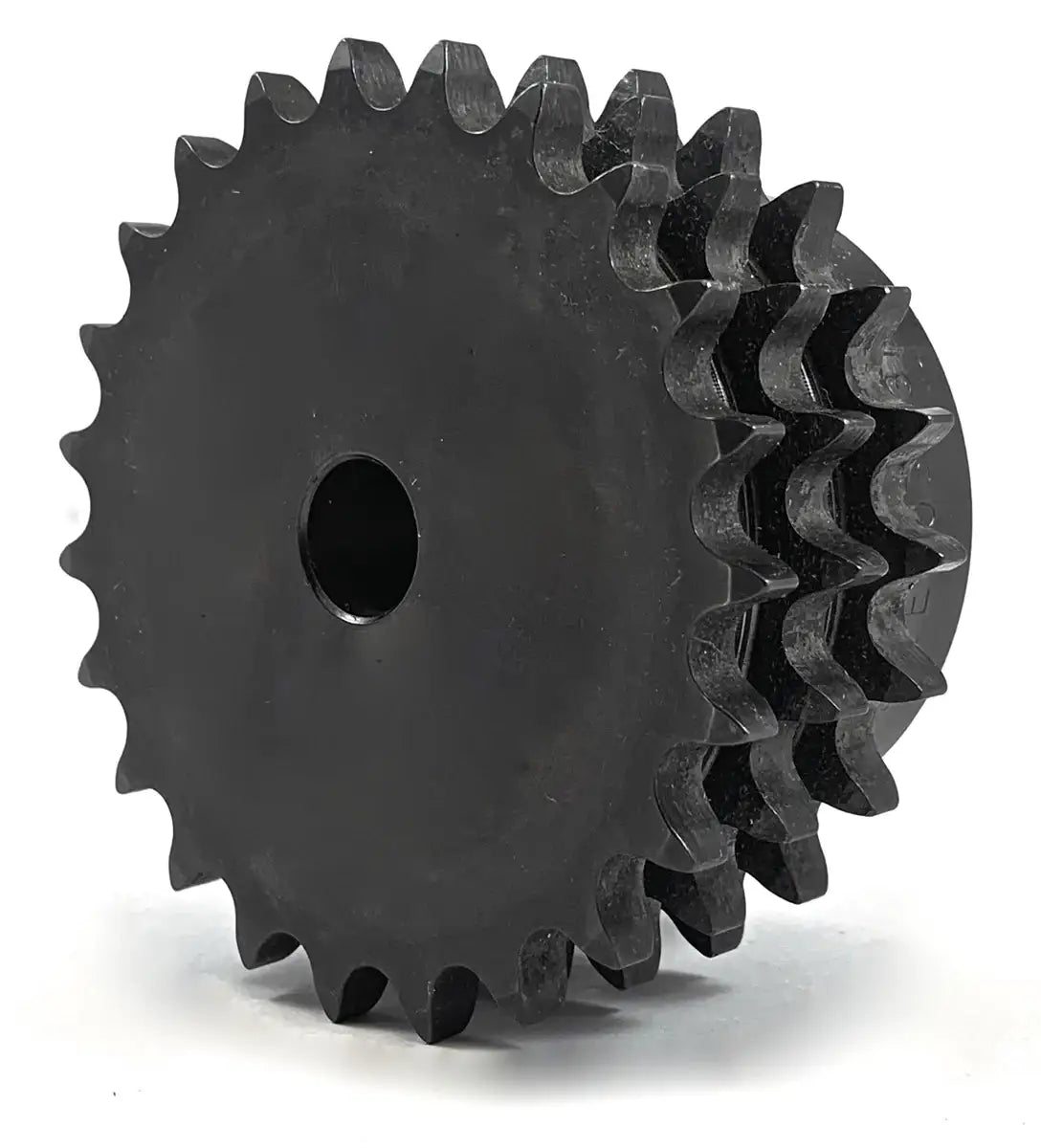

Triple E160B24 Sprocket
Note:
Custom Cut to Length Chain Also Available
SKU: E160B24-SPROCKET
Only 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Triple E160B24 Sprocket Features
Triple E160B24 Sprocket Specifications
E160B24 Sprocket is a triple B-Hub roller chain sprocket with 24 teeth and a stock bore. Our triple E160B24 sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. Besides the sprocket, we also stock 160-3 roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E160B24 Sprocket Dimensions
- Sprocket Size: E160B24
- Tooth Count: 24
- Outside Diameter: 16.39"
- Sprocket Type: B
- Stock Bore: 2"
- Recommend Maximum Bore: 5-1/2"
- Hub Diameter: 8"
- Length Thru Bore: 7-5/8"
- Sprocket Weight: 265 LBS
- Sprocket Size: E160B24
- Tooth Count: 24
- Outside Diameter: 16.39"
- Sprocket Type: B
- Stock Bore: 2"
- Recommend Maximum Bore: 5-1/2"
- Hub Diameter: 8"
- Length Thru Bore: 7-5/8"
- Sprocket Weight: 265 LBS
