Specialty Chain > Pan Conveyor Chain
E1778110 Chain - Central Chain
Note:
Custom Cut to Length Chain Also Available
SKU: E-1778-110-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
E1778110 Chain - Central Chain Features
E1778110 Chain - Central Chain Specifications

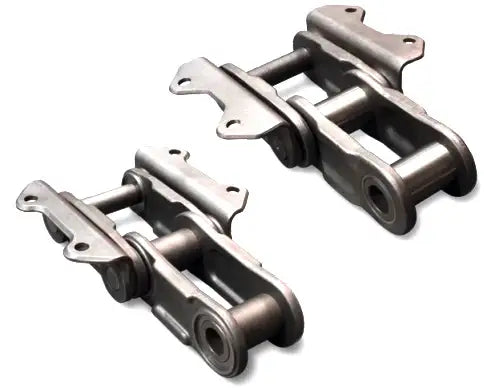

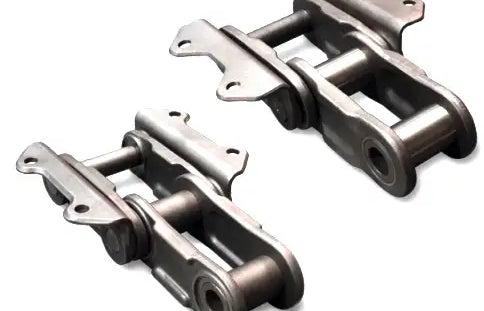

The industry demand for a heavy-duty central chain (carry chain) for pan conveyor assemblies has never been higher. The E1778110 chain we supply is made with premium materials and is designed to withstand some of the harshest applications on the planet. The K style attachment links are mounted to the outside links (pin links) of the E-1778-110 chain and provide ample carry space for the buckets/ pans. We also supply E1778110 chain sprockets. For more information or to get a quote please contact us and we will be happy to assist you.
E1778110 Chain Dimensions
- Chain Size: E-1778-110
- Pitch (P): 177.8mm
- Pin Diameter (D6): 40mm
- Bushing Outside Diameter (D5): 58mm
- Width Between Sidebars (L): 70mm
- Sidebar Thickness (S): 18.5mm
- Average Ultimate Strength: 112,000 kG
- Chain Size: E-1778-110
- Pitch (P): 177.8mm
- Pin Diameter (D6): 40mm
- Bushing Outside Diameter (D5): 58mm
- Width Between Sidebars (L): 70mm
- Sidebar Thickness (S): 18.5mm
- Average Ultimate Strength: 112,000 kG
