DS40H21 sprocket bushed DS40H21 sprocket
Home > Power Transmission > Sprockets > Roller Chain Sprockets > DS40H21 Sprocket (Taper Bushed)

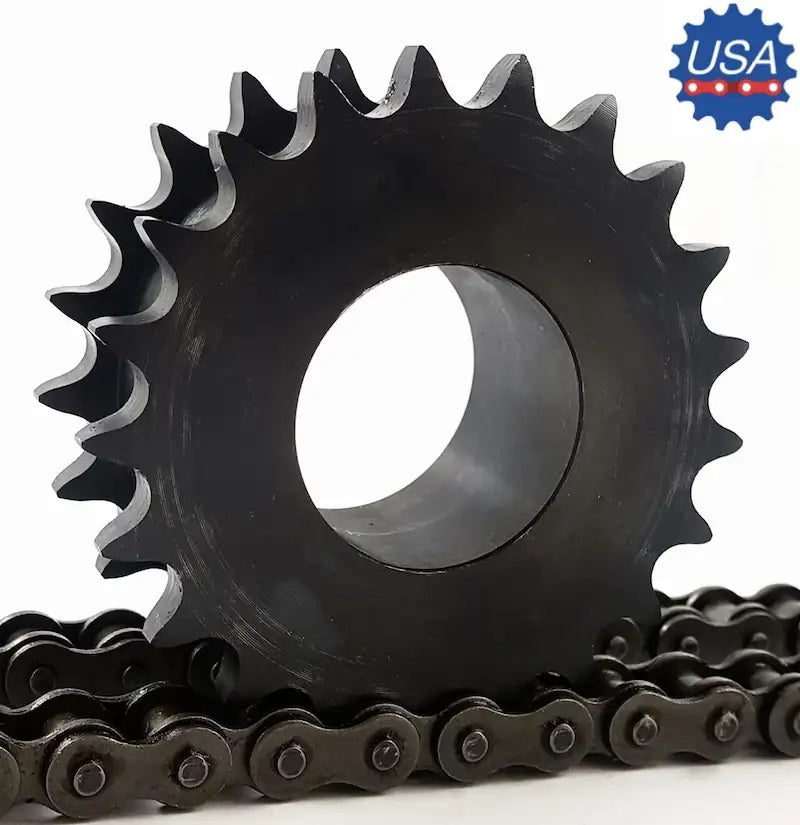

DS40H21 Sprocket (Taper Bushed)

$62.99
SKU: DS40H21-SPROCKET
Item is in stock Only 0 left in stockItem is out of stock Item is unavailable
Quantity
Request a Quote
<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715091333487" , "metafield_value":""}]
DS40H21 Sprocket (Taper Bushed) Features
DS40H21 Sprocket (Taper Bushed) Specifications
This DS40H21 sprocket is a durable, high quality, and precision double single sprocket with hardened teeth that is manufactured to accept a H bushing. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. DS40H21 sprockets are made to accept a H size taper bushing which we also stock with a wide range of bore sizes. We also offer sprockets with finished bore configurations, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. For more information please contact us and we will be happy to assist you.

Dimensions:
DS40H21 Sprocket (Taper Bushed)
  • Sprocket Size: DS40H21
  • Tooth Count: 21
  • Bushing Size: H
  • Outside Diameter: 3.620"
  • Pitch Diameter: 3.355"
  • Dimension (L1): 1-13/32"
  • Dimension (C): 1-1/8"
  • Dimension (E): 2-1/2"
  • Dimension (L2): 2-1/32"
  • Dimension (W): 0.284"
  • Sprocket Weight: 2.0 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: DS40H21
  • Tooth Count: 21
  • Bushing Size: H
  • Outside Diameter: 3.620"
  • Pitch Diameter: 3.355"
  • Dimension (L1): 1-13/32"
  • Dimension (C): 1-1/8"
  • Dimension (E): 2-1/2"
  • Dimension (L2): 2-1/32"
  • Dimension (W): 0.284"
  • Sprocket Weight: 2.0 LBS
