DS160A18 High-Performance Sprocket 1-11/16"
$1,394.99
SKU: DS160A18-SPROCKET
Item is in stock
Only 0 left in stockItem is out of stock
Item is unavailable
DS160A18 High-Performance Sprocket 1-11/16" Features
DS160A18 High-Performance Sprocket 1-11/16" Specifications

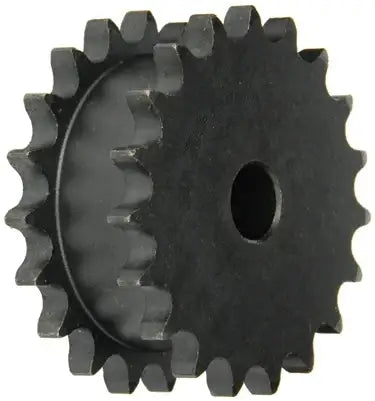

This double single type A DS160A18 sprocket with 18 hardened teeth is manufactured to run two separate strands of #160-1 Roller Chain and is supplied with a 1-11/16" stock bore. This DS160A18 sprocket is made from high quality carbon steel, and has heat-treated hardened teeth, meaning that this sprocket is extremely durable and high strength. Type A (A-Plate) sprockets have a narrow profile and no hub, and are easily adaptable for bushings, bearings, and sleeves. They can be used with large diameter shafts, drilled for mounting, or welded directly to other apparatuses. We have bushed type double-single sprockets on the shelf and the capabilities to re-bore/ machine these sprockets out ranging from 1-11/16" bore out to 6-13/16" bore. Please contact us for additional questions on double single sprockets, custom quotes, or for large quantity request.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Click Here To See Our Other Products!
Dimensions:
- Sprocket Size: DS160A18
- Tooth Count: 18
- Outside Diameter: 12.543"
- Pitch Diameter: 11.148"
- Sprocket Type: A
- Minimum Bore: 1-11/16"
- Maximum Bore: 6-13/16"
- Dimension (L): 4-1/4"
- Dimension (C): 3-3/32"
- Dimension (E): 9-5/16"
- Dimension (W): 1.156"
- Sprocket Weight: 97.0 LBS
Phone: (407) 347-3519
Email:
Click Here To See Our Other Products!
- Sprocket Size: DS160A18
- Tooth Count: 18
- Outside Diameter: 12.543"
- Pitch Diameter: 11.148"
- Sprocket Type: A
- Minimum Bore: 1-11/16"
- Maximum Bore: 6-13/16"
- Dimension (L): 4-1/4"
- Dimension (C): 3-3/32"
- Dimension (E): 9-5/16"
- Dimension (W): 1.156"
- Sprocket Weight: 97.0 LBS
