DS140A16 Sprocket (Double Single)

Name: DS140A16 Sprocket (Double Single)
Brand: USA ROLLER CHAIN
SKU: DS140A16-SPROCKET
Price: 611.99 USD
Availability: InStock

Note: Custom Cut to Length Chain Also Available

$611.99

SKU: DS140A16-SPROCKET

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Don’t see what you need?

Call us

Buy it With:

DS140A16 Sprocket (Double Single) Features

DS140A16 Sprocket (Double Single) Specifications

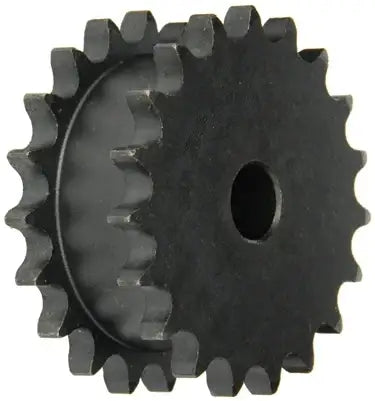

This double single type A DS140A16 sprocket with 16 hardened teeth is manufactured to run two separate strands of #140-1 Roller Chain and is supplied with a 1-7/16" stock bore. This DS140A16 sprocket is made from high quality carbon steel, and has heat-treated hardened teeth, meaning that this sprocket is extremely durable and high strength. Type A (A-Plate) sprockets have a narrow profile and no hub, and are easily adaptable for bushings, bearings, and sleeves. They can be used with large diameter shafts, drilled for mounting, or welded directly to other apparatuses. We have bushed type double-single sprockets on the shelf and the capabilities to re-bore/ machine these sprockets out ranging from 1-7/16" bore out to 5-1/4" bore. Please contact us for additional questions on double single sprockets, custom quotes, or for large quantity request.

Dimensions:
DS140A16 Sprocket (Double Single)
