D40B72 Sprocket With Stock Bore ANSI Sprocket

Power Transmission > Sprockets > Roller Chain Sprockets > Multi Strand Roller Chain Sprockets > Double Roller Chain Sprockets > #40-2 Double Sprockets > #40-2 B-Hub Sprockets > D40B72 Sprockets

D40B72 Sprocket With Stock Bore

Note: Custom Cut to Length Chain Also Available
$236.99
SKU: D40B72-SPROCKET
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable
Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715047227759" , "metafield_value":""}]
D40B72 Sprocket With Stock Bore Features
D40B72 Sprocket With Stock Bore Specifications

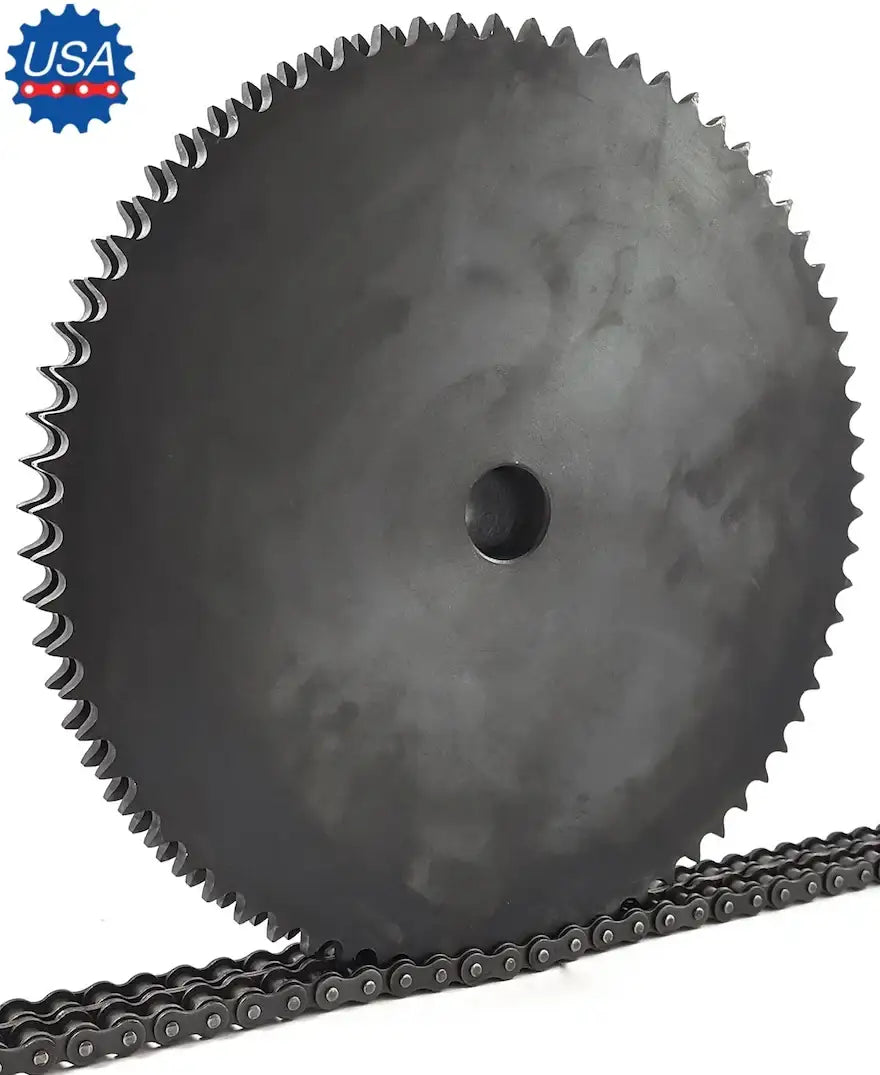

This D40B72 sprocket is a durable, premium quality, and precision 72 tooth double sprocket that is manufactured out of high-quality steel. This sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #40-2 double roller chain and sprocket thus preventing premature wear or breakage. It is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D40B72 sprockets with a stock bore has the standard 1-3/16" inside diameter hole with no keyway or setscrews and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.

Dimensions:
D40B72 Sprocket With Stock Bore
  • Sprocket Size: D40B72
  • Tooth Count: 72
  • Outside Diameter: 11.750"
  • Hub Type: B
  • Bore Size: 1-3/16"
  • Recommended Maximum: 2-3/4"
  • Hub Diameter: 4-1/4"
  • Length Thru Bore: 2-1/8"
  • Weight: 27.88 LBS
  • Interchanges: D40B72, D40B72H, HD40B72

Phone: (407) 347-3519
Email: sales@usarollerchain.com
  • Sprocket Size: D40B72
  • Tooth Count: 72
  • Outside Diameter: 11.750"
  • Hub Type: B
  • Bore Size: 1-3/16"
  • Recommended Maximum: 2-3/4"
  • Hub Diameter: 4-1/4"
  • Length Thru Bore: 2-1/8"
  • Weight: 27.88 LBS
  • Interchanges: D40B72, D40B72H, HD40B72
