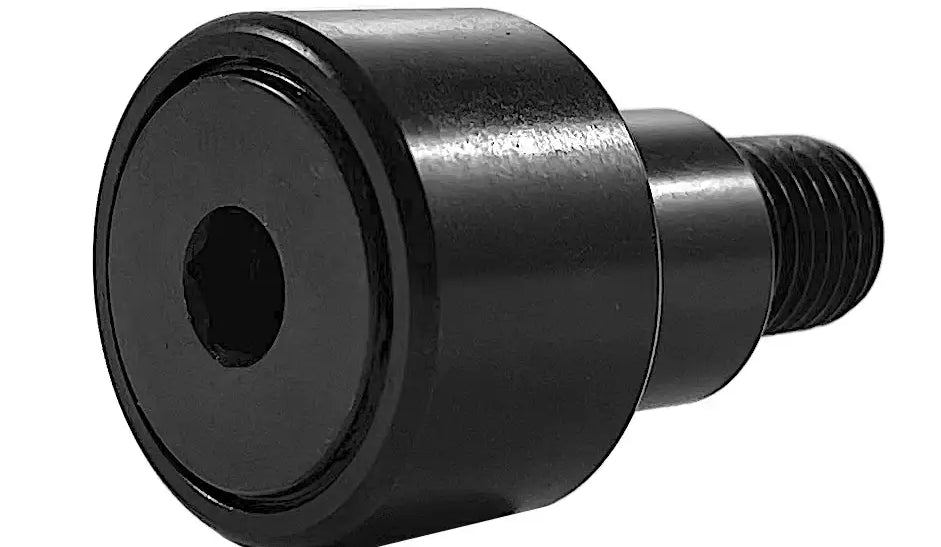

CFE-9/16-SB Cam Follower | CFE-9/16SB Cam Follower Bearing

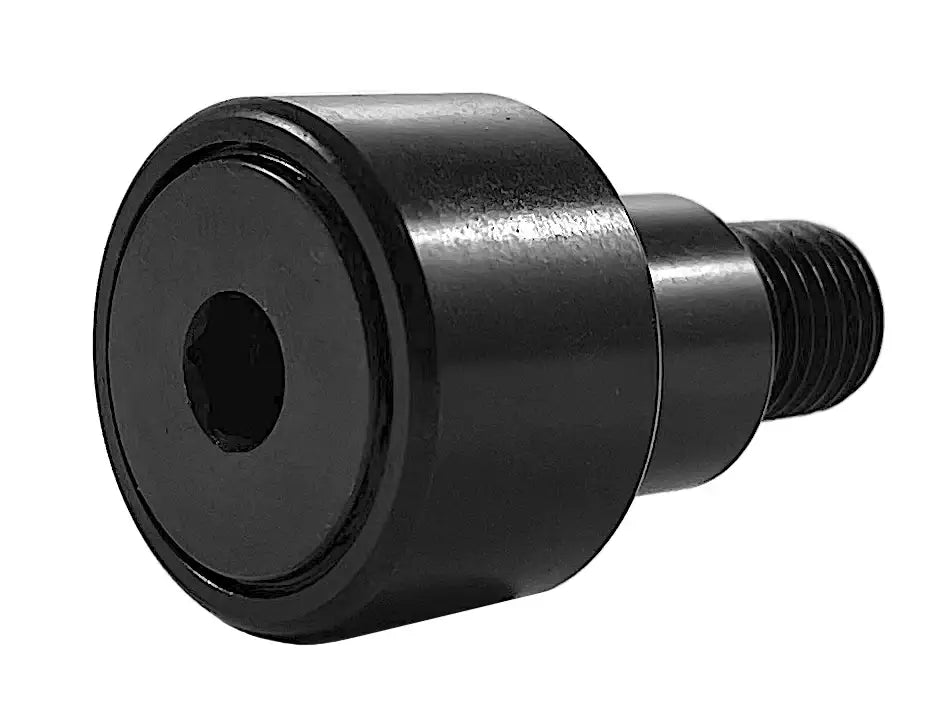

CFE-9/16-SB Cam Follower has a 9/16" roller diameter with an eccentric stud and is also referred to as a CFE-9/16SB track roller. Our CFE-9/16-SB cam follower is a full complement sealed bearing that is black oxide finished for corrosion resistance and has a hex socket in the stud head for easier mounting. Cam follower bearings, in general, are designed with a thick outer ring to run directly in a track; the design permits high-load carrying capacities with minimal distortion or bending. They are commonly found in conveyor equipment, material handling, ram support rollers, indexing equipment, and more. The CFE-9/16-SB cam follower bearing utilizes premium needle rollers with no cage (full complement configuration) to maximize the load capacity and can even be used in overhead and cantilever mounted applications. Our cam follower bearings come already pre-lubed with high-quality multipurpose grease but are also re-lubricated through a radial hole in the stem of the stud. Additionally, this CFE-9/16-SB cam follower is sealed utilizing internal thrust washers, which extend service life in dusty environments or conditions where lubrication is not performed often. This CFE-9/16-SB cam follower directly interchanges with other brands and is dimensionally made to industry standards. For more information or to get a quote on our premium CFE-9/16-SB cam follower, contact our customer service team, and we will be happy to assist you!

CFE-9/16-SB Cam Follower Dimensions

• Part #: CFE-9/16SB
• Roller Diameter (RD): .5625" +0.000/ -0.001
• Roller Width (W): .3750" +0.000/ -0.005
• Bushing Length (G*): .3750" +0.000/ -0.010
• Bushing Diameter (B.D.): .2500"+/-0.001"
• Stud Length (SL): 5/8"
• Minimum Perfect Thread Length (TL): 1/4"
• Fine Threads: 10-32 UNF
• ECC.: .010"
• Recommended Clamping Torque Pound Inches: 15
• Maximum Static Capacity: 790 LBS
• Maximum Dynamic Capacity: 680 LBS
