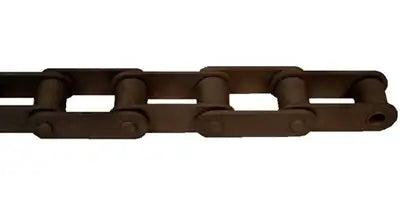

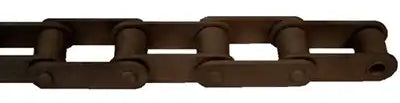

CA2063H Roller Chain - Agricultural Chain
SKU: CA2063H-CHAIN
Only 0 left in stockItem is out of stock
Item is unavailable
CA2063H Roller Chain - Agricultural Chain Features
CA2063H Roller Chain - Agricultural Chain Specifications
CA2063H roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.
CA2063H Chain Dimensions
- Pitch (P): 38.10mm
- Roller Diameter (D): 11.89mm
- Dimension (W): 12.70mm
- Pin Diameter (E): 5.94mm
- Pin Length (C): 29.4mm
- Plate Height (H): 19.30mm
- Plate Thickness (T): 3.25mm
- Tensile Strength: 8,093 LBS
- Pitch (P): 38.10mm
- Roller Diameter (D): 11.89mm
- Dimension (W): 12.70mm
- Pin Diameter (E): 5.94mm
- Pin Length (C): 29.4mm
- Plate Height (H): 19.30mm
- Plate Thickness (T): 3.25mm
- Tensile Strength: 8,093 LBS
