Roller Chain > More Roller Chains > Agricultural Roller Chain > CA2060H Chain

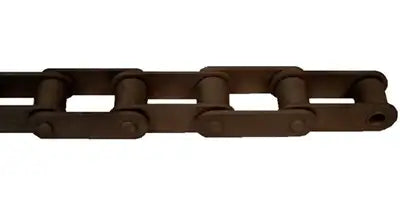

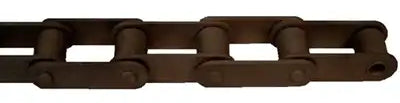

CA2060H Roller Chain - Agricultural Chain
Note:
Custom Cut to Length Chain Also Available
SKU: CA2060H-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
CA2060H Roller Chain - Agricultural Chain Features
CA2060H Roller Chain - Agricultural Chain Specifications
CA2060H roller chain is typically found in agricultural and conveying applications. This chain features solid rollers for increased performance and even load distribution, as well as heat-treated components for increased strength and shock load capability. Besides the chain we can also supply sprockets, bearings, shafting, and more! To get a quote or for more information please contact us and we will be happy to assist you.
CA2060H Chain Dimensions
- Pitch (P): 38.10mm
- Roller Diameter (D): 11.91mm
- Dimension (W): 12.70mm
- Pin Diameter (E): 5.94mm
- Pin Length (C): 29.2mm
- Plate Height (H): 18.00mm
- Plate Thickness (T): 3.25mm
- Tensile Strength: 8,093 LBS
- Pitch (P): 38.10mm
- Roller Diameter (D): 11.91mm
- Dimension (W): 12.70mm
- Pin Diameter (E): 5.94mm
- Pin Length (C): 29.2mm
- Plate Height (H): 18.00mm
- Plate Thickness (T): 3.25mm
- Tensile Strength: 8,093 LBS
