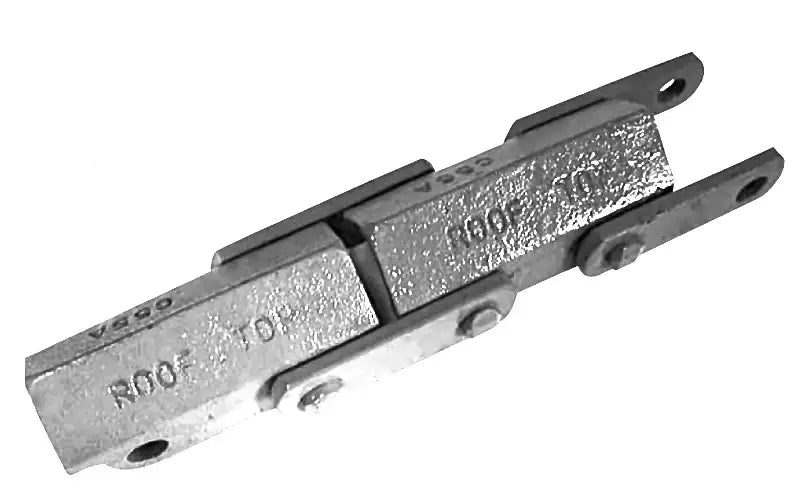

C55B Chain | C55B Rooftop Chain

C55B Chain | C55B Rooftop Chain

Note: Custom Cut to Length Chain Also Available
Product Code: C55B-ROOFTOP-CHAIN
Shipping calculated at checkout.
View full details
Description
Specification
C55B chain is a rooftop style chain with a slightly flattened surface on top of the "roof" of the chain for carrying and conveying products. C55B rooftop chain is one of the most popular rooftop chains available, it is also often called C55B camelback chain. Our C55B chain is manufactured to American Standards meaning that it dimensionally interchanges with other brands and runs on the same sprockets. What sets our chain above the "standard" is the high-quality cast block links/ rooftop links as well as the special heat-treated pins and sidebars. Utilizing heat-treated steel parts and high-quality cast this rooftop chain is sure to impress! Typically the chain is supplied in 10ft lengths with means to connect it supplied, but alternate lengths of C55B chain are also available upon request. We also supply a complete line of c55B sprockets, guide track, as well as other PT components.

C55B Chain Dimensions
  • Chain Type: C55B Rooftop Chain
  • Pitch: 1.631"
  • Pin Diameter (D): 0.375"
  • Sidebar Thickness (T): 0.190"
  • Barrel Diameter (Q): 0.720"
  • Maximum Allowable Sprocket Face (S): 0.690"
  • Overall Height (P): 1.250"
  • Overall Width Riveted (A): 2.000"
  • Head Of Pin To Center Line (C): 1.000"
  • Overall Length Of Barrel (X): 1.250"
  • Sidebar Height (H): 0.750"
  • Height Of Shoulder (F): 0.750"
  • Center Of Pin To Top (J): 0.880"
  • Style Of Top: Peaked
  • Links Per 10ft: 74
  • Weight Per Foot: 3.2 LBS
  • Ultimate Strength: 117,000 LBS
  • Maximum Working Load: 1,400 LBS

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • C55B Rooftop Chain
  • High Quality C55B Rooftop Chain
  • Extremely Durable
  • C55B Sprockets Available
  • Able To Travel In Both Directions
Featured image
  • Chain Type: C55B Rooftop Chain
  • Pitch: 1.631"
  • Pin Diameter (D): 0.375"
  • Sidebar Thickness (T): 0.190"
  • Barrel Diameter (Q): 0.720"
  • Maximum Allowable Sprocket Face (S): 0.690"
  • Overall Height (P): 1.250"
  • Overall Width Riveted (A): 2.000"
  • Head Of Pin To Center Line (C): 1.000"
  • Overall Length Of Barrel (X): 1.250"
  • Sidebar Height (H): 0.750"
  • Height Of Shoulder (F): 0.750"
  • Center Of Pin To Top (J): 0.880"
  • Style Of Top: Peaked
  • Links Per 10ft: 74
  • Weight Per Foot: 3.2 LBS
  • Ultimate Strength: 117,000 LBS
  • Maximum Working Load: 1,400 LBS
