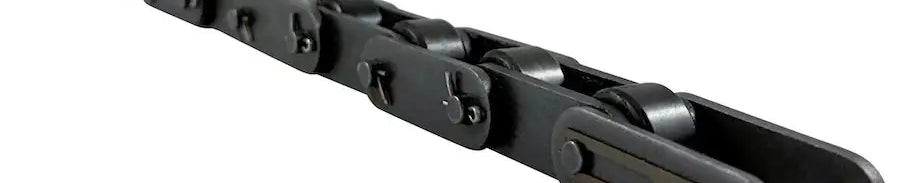

C2102H Cottered Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: C2102HC-COTTERED-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
C2102H Cottered Roller Chain Features
C2102H Cottered Roller Chain Specifications
C2102H cottered roller chain is manufactured using cotters instead of rivets. This creates a chain that is easier to disassemble than a standard riveted chain. Our C2102H cottered chain is manufactured in accordance with ANSI B29 Standards, meaning that it will directly interchange with other brands. This chain also uses heat-treated and shot peened components for an improved working life an durability, it also features solid rollers and is pre-stretched for a better long-term performance. Typically we supply C2102H cottered roller chain in 10ft boxes but alternate lengths are available upon request. We also supply double pitch sprockets and a full line of attachment options for this chain. For additional information or to get pricing please contact us.
C2102H Cottered Chain Dimensions
- Chain Size: C2102H
- Pitch (P): 2.500"
- Roller Width (W): 0.750"
- Roller Diameter (R): 1.562"
- Plate Height (H): 1.121"
- Plate Thickness (T): 0.187"
- Pin Diameter (D): 0.375"
- Weight: 3.90 LBS/ FT
- Chain Size: C2102H
- Pitch (P): 2.500"
- Roller Width (W): 0.750"
- Roller Diameter (R): 1.562"
- Plate Height (H): 1.121"
- Plate Thickness (T): 0.187"
- Pin Diameter (D): 0.375"
- Weight: 3.90 LBS/ FT
