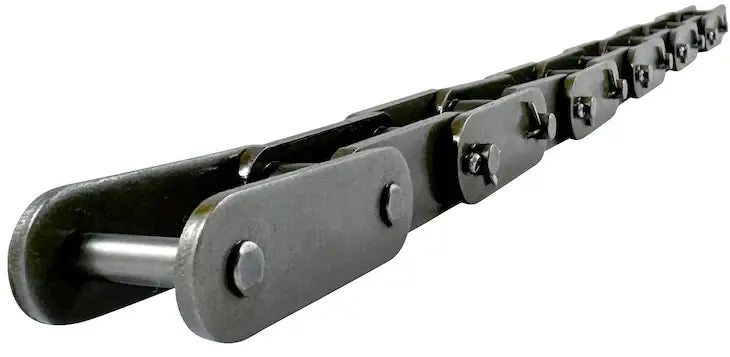

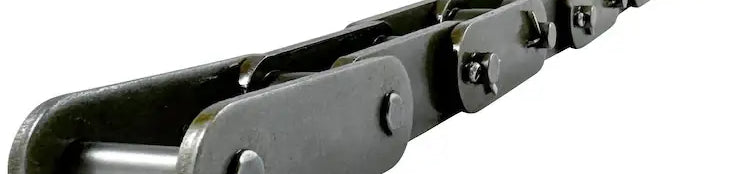

C2080H Cottered Roller Chain

C2080H Cottered Roller Chain

Note: Custom Cut to Length Chain Also Available
Product Code: C2080HC-COTTERED-CHAIN
Shipping calculated at checkout.
View full details
C2080H cottered roller chain is manufactured using cotters instead of rivets. This creates a chain that is easier to disassemble than a standard riveted chain. Our C2080H cottered chain is manufactured in accordance with ANSI B29 Standards, meaning that it will directly interchange with other brands. This chain also uses heat-treated and shot peened components for an improved working life an durability, it also features solid rollers and is pre-stretched for a better long-term performance. Typically we supply C2080H cottered roller chain in 10ft boxes but alternate lengths are available upon request. We also supply double pitch sprockets and a full line of attachment options for this chain. For additional information or to get pricing please contact us.

C2080H Cottered Chain Dimensions


  • Chain Size: C2080H
  • Pitch (P): 2.000"
  • Roller Width (W): 0.625"
  • Roller Diameter (R): 0.625"
  • Plate Height (H): 0.935"
  • Plate Thickness (T): 0.156"
  • Pin Diameter (D): 0.312"
  • Weight: 1.67 LBS /FT



Feature

  • High-Quality Cottered Chain
  • Manufactured In Accordance with ANSI B29.1 Standards
  • Uses Heat-Treated Components
Featured image
  • Chain Size: C2080H
  • Pitch (P): 2.000"
  • Roller Width (W): 0.625"
  • Roller Diameter (R): 0.625"
  • Plate Height (H): 0.935"
  • Plate Thickness (T): 0.156"
  • Pin Diameter (D): 0.312"
  • Weight: 1.67 LBS /FT
