C2060H Chain with G1 Hole (Type A)

Name: C2060H Chain with G1 Hole (Type A)
Brand: USA ROLLER CHAIN
SKU: C2060H-G1-A-CHAIN
Availability: InStock

Note: Type A G1 (0.254" ID)

SKU: C2060H-G1-A-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

Made in USA C2060H Roller Chain Breaker

C2060H Chain with G1 Hole (Type A) Description/Features

C2060H Chain with G1 Hole (Type A) Specifications

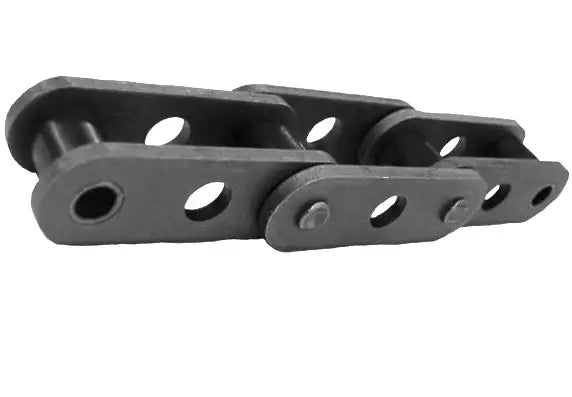

C2060H chain with G1 hole attachments is used in many packaging and conveying applications. The type A G1 hole is placed in the center of each plate and does not have any negative effects on the integrity or performance of the chain. Something to note is that there are five different types of standard G1 holes (A, B, C, D, E), each one has a different hole size based on the applications needs. Specifically, this G1 attachment is the A style which means it has a hole inside diameter of 0.254". We typically supply C2060H chain with G1 hole attachments in 10ft boxes but alternate lengths are available upon request. For more information or to get a quote please contact us.
