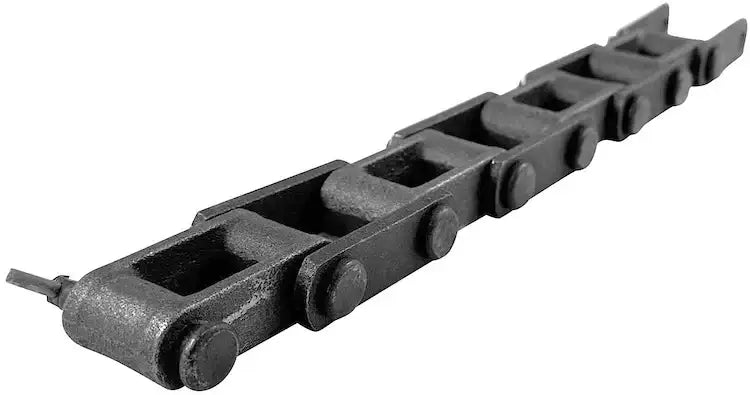

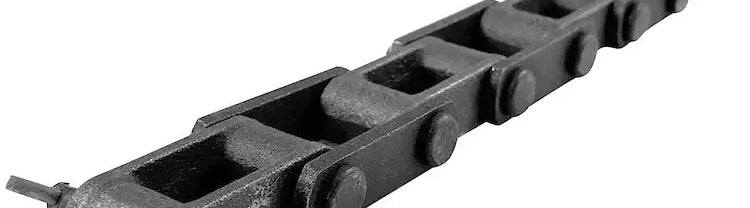

C110 Chain - 6" Pitch Cast Combination Chain

C110 chain is a cast combination conveyor chain with a 6" pitch and a 32,400 LB tensile strength. C110 chain is made with cast inner links and mild steel pin links, allowing it to operate in non-abrasive or abrasive applications. We supply the C110 chain to a range of applications worldwide, including grain, lumber, wastewater, sugar mills, flight conveyors, and live-bottom beds. Our superior steel grades and state-of-the-art manufacturing methods produce a C110 chain that is more capable and has a longer chain life than other alternatives in the industry. Construction-wise, the C110 chain has cast inner links (block) and mild steel pin links to benefit withstanding gritty applications while at an economical price point and upholding tensile strength. The chain can operate bi-directionally due to the links being symmetric and can be used in abrasive or non-abrasive applications. Additionally, we supply a range of C110 chain attachments, sprockets, and other accessories. For additional information or to get a quote on the C110 cast combination chain, contact our customer service team, and we will be happy to assist you! It is important to note that the C110 chain typically comes as cottered construction, but we also supply this chain as riveted; please specify which configuration you need when requesting a quote.

C110 Chain Dimensions

• Chain Size: C110
• Pitch (P): 6.000"
• Overall Width - Cottered (C): 4.560"
• Overall Width - Riveted: 4.380"
• Pin Diameter (E): 0.625"
• Sidebar Height (F): 1.500"
• Barrel Diameter (H): 1.250"
• Head of Pin to Center Line (J): 2.060"
• End of Pin to Center Line - Cottered (K): 2.280"
• End of Pin to Center Line - Riveted: 2.190"
• Sidebar Thickness (T): 0.380"
• Maximum Allowable Sprocket Face (A): 1.940"
• Barrel Length (X): 2.880"
• Tensile Strength: 32,400 LB
• Working Load: 5,380 LB
• Links Per 10ft: 20
• Weight: 6.3 LB/ FT
