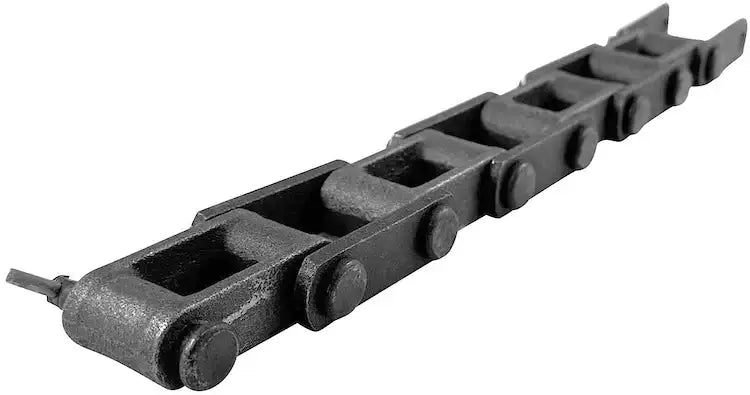

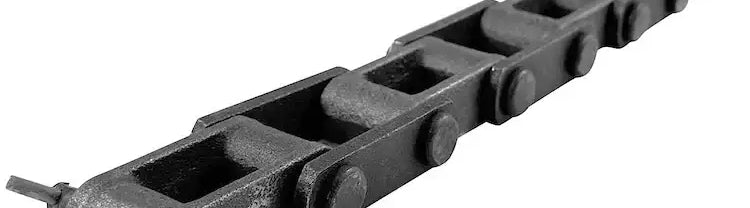

C102-1/2 Chain - 4.04" Pitch Cast Combination Chain

C102-1/2 chain is a 4.04" pitch, cast combination chain most commonly found in grain elevators or lumber mills; the C102-1/2 chain possesses excellent strength, with an average tensile rating of 48,600 LB. The C102-1/2 chain is also popular in sugar mills, flight conveyors, live-bottom trucks, and more. Construction-wise, the C102-1/2 chain has cast inner links (block) and mild steel pin links to benefit withstanding gritty applications while at an economical price point and upholding tensile strength. The chain can operate bi-directionally due to the links being symmetric and can be used in abrasive or non-abrasive applications. Additionally, we supply a range of C102-1/2 chain attachments, sprockets, and other accessories. For additional information or to get a quote on the C102-1/2 cast combination chain, contact our customer service team, and we will be happy to assist you! It is important to note that the C102-1/2 chain typically comes as cottered construction, but we also supply this chain as riveted; please specify which configuration you need when requesting a quote.

C102-1/2 Chain Dimensions

• Chain Size: C102-1/2
• Pitch (P): 4.040"
• Overall Width - Cottered (C): 5.000"
• Overall Width - Riveted: 4.380"
• Pin Diameter (E): 0.750"
• Sidebar Height (F): 1.750"
• Barrel Diameter (H): 1.380"
• Head of Pin to Center Line (J): 2.120"
• End of Pin to Center Line - Cottered (K): 2.500"
• End of Pin to Center Line - Riveted: 2.190"
• Sidebar Thickness (T): 0.380"
• Maximum Allowable Sprocket Face (A): 2.000"
• Barrel Length (X): 2.910"
• Tensile Strength: 48,600 LB
• Working Load: 6,530 LB
• Links Per 10ft: 30
• Weight: 9.50 LB/ FT
