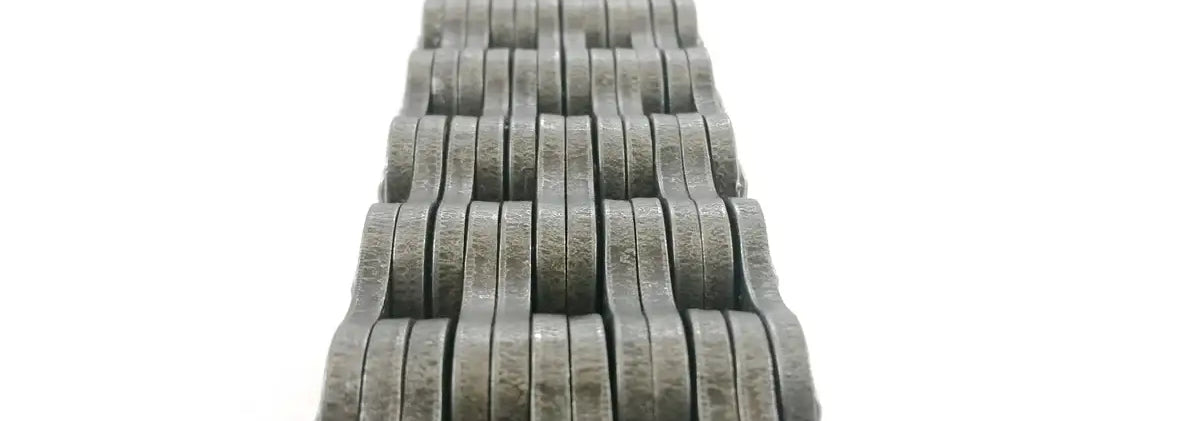

BL566 Leaf Chain | ANSI BL 6X6 Chain 0.625" Pitch - 10ft Box

BL566 Leaf Chain | ANSI BL 6X6 Chain 0.625" Pitch - 10ft Box

Note: Custom Cut to Length Chain Also Available
$199.99
$199.99
In Stock
On Sale Sold out
Product Code: BL566-CHAIN
In Stock
Shipping calculated at checkout.

Login to Request a Quote

View full details
Description
Specification

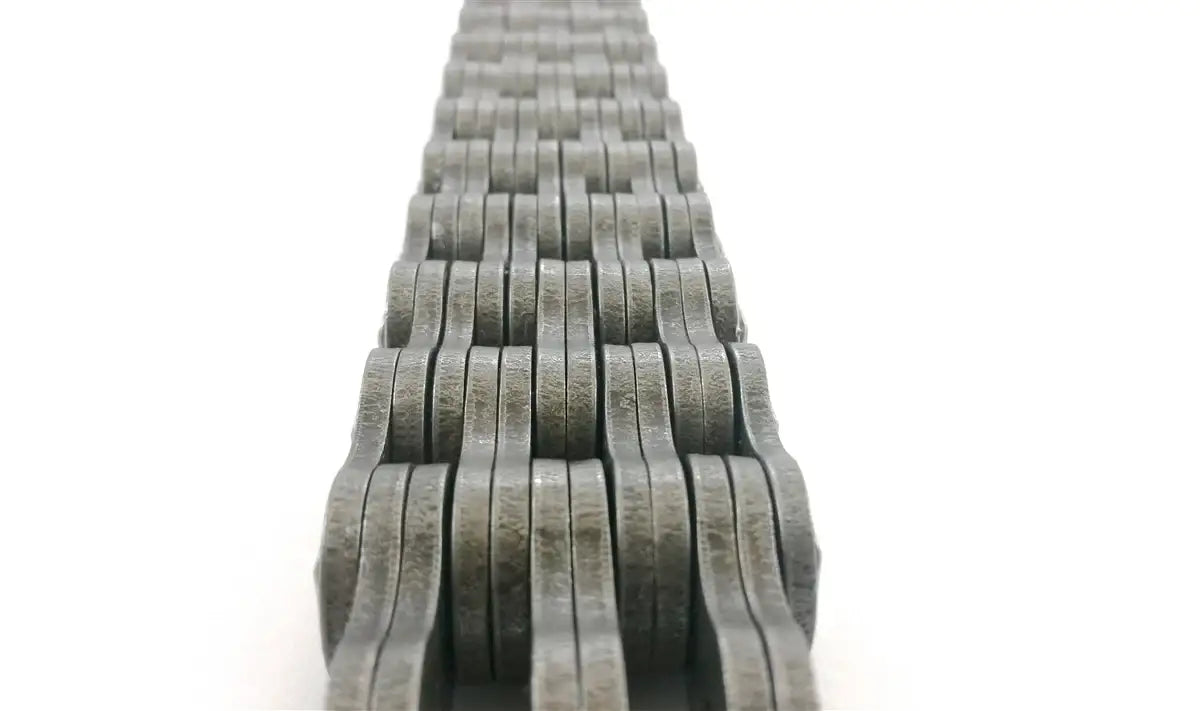

BL566 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL566 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 6X6 lacing and is supplied as 10ft boxes, reels (50ft - 250ft), and cut to length sections upon request.

Standard Series Specifications:
  • Chain Size: BL566
  • Pitch (P): 0.625"
  • Pin Diameter (A): 0.234"
  • Plate thickness (B): 0.094"
  • Plate Height (C): 0.591"
  • Pin Length (D): 1.278"
  • Chain Weight: 1.88 LBS/ Ft
  • Tensile Strength: 28,000 LBS

For customers needing something a little stronger, we also stock a premium (Premier Series) BL566 Leaf chain. The primary differences between the standard series and the Premier Series of leaf chains is that the premier series offers published working loads on most sizes, higher precision components, shot peened plates, heat-treated plates and pins, and is the best quality leaf chain that we offer. One common misconception in the industry is that higher tensile strengths mean higher working loads, this is not always true when taking performance factors into consideration.

Premier Series Specifications:
  • Chain Size: BL566
  • Pitch (P): 0.625"
  • Pin Diameter (A): 0.234"
  • Plate thickness (B): 0.094"
  • Plate Height (C): 0.591"
  • Pin Length (D): 1.278"
  • Chain Weight: 1.88 LBS/ Ft
  • Minimum Tensile Strength: 26,400 LBS
  • Working Load: 2,332 LBS

This BL series leaf chain is compatible with the following part numbers:

Manufacturer

Part Numbers

Cat Lift Trucks

A000001273

Clark

BL566, 3716989, 3718768, HY1519098

Hyster

1342151, 1349238, 1342122, 1342385, 1342397, 1342381, 1342138, 1342130, 1342378, 1342389, 1342146, 1342132, 1519098, 1342143, 1359239, 1342133, 1342125, 1342136, 1342376, 1342145, 1342371, 1369329, 1359240, 1342393, 1342134, 1342379, 866621, 1342391, 1342147, 1359237, 1342144, 866620, 1359235, 1342117, 866618, 3041122, 1342150, 800111902, 800111905, 1342398, 1342373, 1342392, 866619, 1342149, 1369327, 1349239, 1342131, 1342401, 1342152, 1342148, 1342121, 1342119, 1342118, 800111904, 1342140, 866622, 1342387, 1369326, 1369325, 1342370, 1349237, 1342375, 1342139, 1342377, 866623, 1342383, 1342129, 1342127, 1342124, 1342395, 1342399, 1342390, 1342300, 1359238, 1359234, 1342394, 1342386, 1342142, 1349240, 1369328, 1369330, 1342396, 1359146, 1342120, 1359144, 1342123, 800111907, 1342380, 1342374, 1342116, 1342128, 1342141, 1342388, 1342372, 1359236, 1342126, 1342382, 1342137, 1342384, 1342135, 866618, 866619, 866620, 866621, 866622, 866623

Intrupa

190BL566, BL566

Linde/Baker

9495094093, L9495094093

LPM

1242201, 2501108223, 190BL566

Mitsubishi Forklifts

A000001273

Nissan

BL566H

SMH

AFBL566F, 800136158, CHBL56610, CHBL566100, CHBL56615, CHBL566

Toyota

5911009281

Yale

504066723, 504065784, 518791660, 504066754, 504065731, 505976504, 504066745, 504066772, 504066793, 504066784, 518791678, 504072706, 504065789, 504065700, 504066719, 504066789, 504066773, 504066782, 504065767, 504065719, 220014990, 504066775, 518791635, 504072737, 504066744, 504065755, 518791643, 504066739, 504066712, 518791617, 504066767, 518791694, 518990626, 504066707, 504066755, 504072767, 504069714, 504066703, 505973548, 504066760, 504066709, 504066729, 518791692, 504072773, 504066764, 518791634, 800111905, 518791615, 504072798, 504066783, 504066718, 504066711, 518791641, 504065781, 504065740, 518791685, 504072794, 518791610, 504066795, 504065770, 518791693, 504066788, 518791690, 800111907, 504066791, 504066737, 505973558, 504072771, 504065721, 504072757, 518791663, 504066720, 518791656, 800111902, 518791679, 504066785, 504072710, 518791628, 504066733, 504072720, 800111904, 504065733, 504066748, 504066771, 504066797, 504065701, 504065782, 504066710, 504066717, 504066735

Balkancar

BL566

Haulotte

B40-00-0023

Renold

1400711

Please note that this table is not a replacement recommendation. The stock chain rolls are not a direct replacement for the part numbers because they have a standard length different from that of the specific part number. Therefore, always take precise measurements of your chain, count the exact number of links, and determine if you need additional accessories such as clevis pins or connecting links.


USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL566 Leaf Chain please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!



Feature

  • Fully Meets ANSI Standards
  • Extremely Heavy-Duty
  • Heat-Treated Components
  • High Strength
  • 6X6 Lacing
Featured image
Standard Series Specifications:

  • Chain Size: BL566
  • Pitch (P): 0.625"
  • Pin Diameter (A): 0.234"
  • Plate thickness (B): 0.094"
  • Plate Height (C): 0.591"
  • Pin Length (D): 1.278"
  • Chain Weight: 1.88 LBS/ Ft
  • Tensile Strength: 28,000 LBS

Premier Series Specifications:

  • Chain Size: BL566
  • Pitch (P): 0.625"
  • Pin Diameter (A): 0.234"
  • Plate thickness (B): 0.094"
  • Plate Height (C): 0.591"
  • Pin Length (D): 1.278"
  • Chain Weight: 1.88 LBS/ Ft
  • Minimum Tensile Strength: 26,400 LBS
  • Working Load: 2,332 LBS
