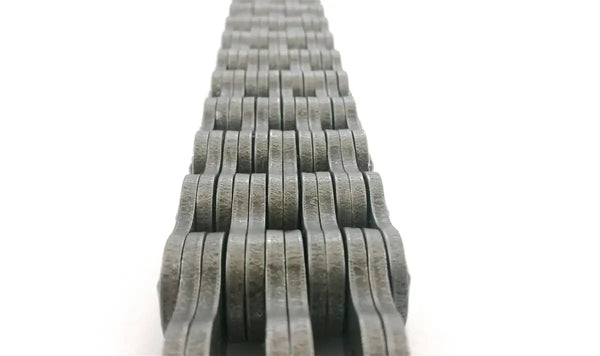

BL1466 Leaf Chain | ANSI BL 6X6 Chain 1.75" Pitch - 10ft Box

BL1466 Leaf Chain is manufactured to ANSI (American) standards and is a heavy-duty series of leaf chain. The most common applications for leaf chain is forklifts, material handling, and lifting applications that require a high strength and heavy duty chain. The standard BL1466 leaf chain that we offer is manufactured using high quality components (pins and plates) that have gone through special manufacturing processes to ensure strength and durability, more so than other leaf chains on the market. This chain has a 6X6 lacing and is supplied as 10ft boxes, reels (25ft - 100ft), and cut to length sections upon request.

Standard Series Specifications:

• Chain Size: BL1466
• Pitch (P): 1.750"
• Pin Diameter (A): 0.562"
• Plate thickness (B): 0.250"
• Plate Height (C): 1.661"
• Pin Length (D): 3.325"
• Chain Weight: 15.13 LBS/ Ft
• Tensile Strength: 153,000 LBS

For customers needing something a little stronger, we also stock a premium (Premier Series) BL1466 Leaf chain. The primary differences between the standard series and the Premier Series of leaf chains is that the premier series offers published working loads on most sizes, higher precision components, shot peened plates, heat-treated plates and pins, and is the best quality leaf chain that we offer. One common misconception in the industry is that higher tensile strengths mean higher working loads, this is not always true when taking performance factors into consideration.

Premier Series Specifications:

• Chain Size: BL1466
• Pitch (P): 1.750"
• Pin Diameter (A): 0.562"
• Plate thickness (B): 0.250"
• Plate Height (C): 1.661"
• Pin Length (D): 3.325"
• Chain Weight: 15.13 LBS/ Ft
• Minimum Tensile Strength: 158,700 LBS
• Working Load: 13,300 LBS

While BL1466 leaf chain sees less widespread usage than other BL series chains, it proves capable of handling strenuous lifting, hoisting, and material handling tasks. Its load capacity allows for deployment with port cargo handling equipment including lift trucks, chassis rotators, top loaders, saddle trucks, side loaders, top lifts, and material handlers.

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get pricing and availability on BL1466 Leaf Chain please contact us and we will be happy to assist you.
